Magnet for injection moulding machine hopper - UP - model L
You do not have to hesitate with us
E-shop number 11 with magnets
4,000,000+ magnetsin our stock
In Stock
We'll send today
50474
8595133919210
€303.28/pc Tax excluded

Data sheet

Description plastic corpus ABS (Acryl-Butadien-Styrol)
Material ABS
Marking MDN 390 MVM UP – L
Number of magnetic bars 3
Magnetic bar diameter 23 mm
Tube magnetic force 3,900 Gs
Tube tearing force 36 N
Total weight 1.5 kg
Magnet temperature resistance 70 °C
Product state New
Design UP
Magnetic force at distance of 1 mm 2,690 Gs
Magnetic force at distance of 5 mm 1,230 Gs

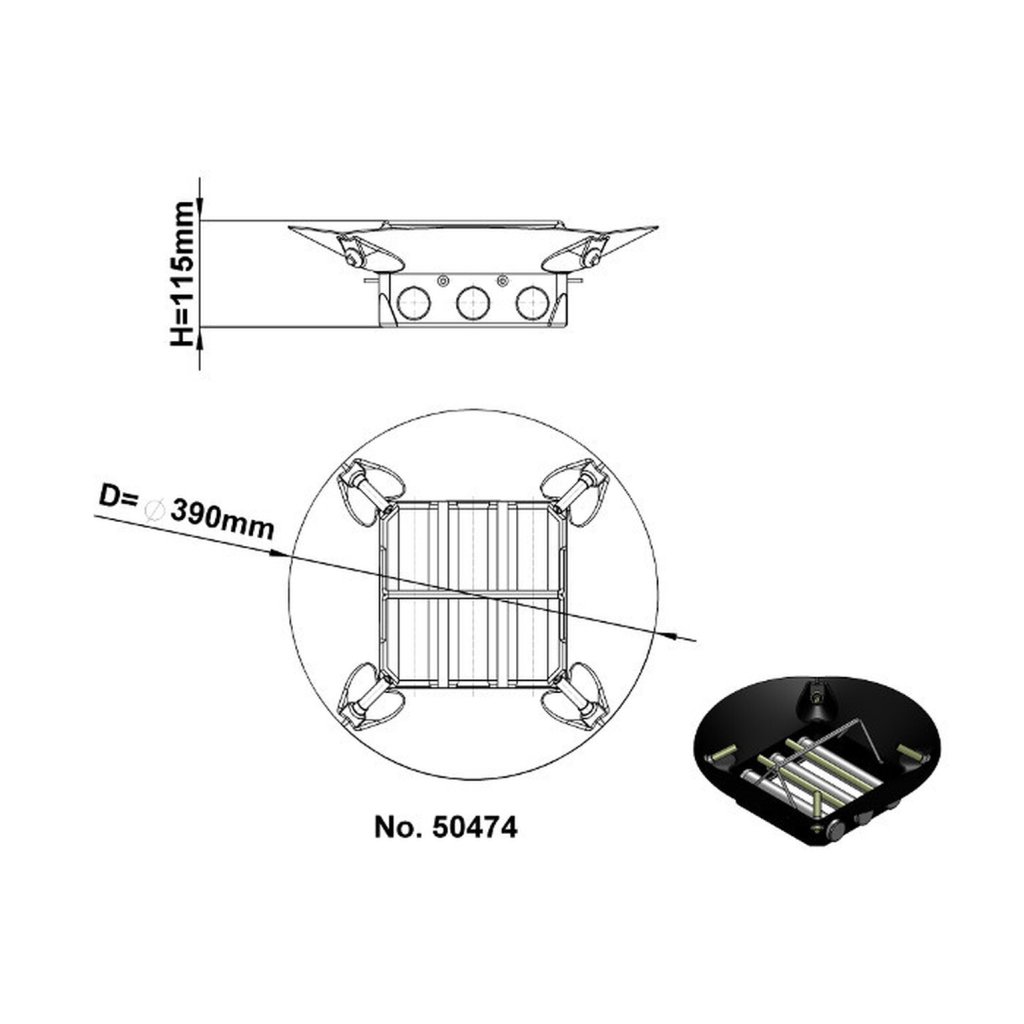

Diameter DN 390
Magnet type Neodymium (NdFeB)

Additional description
