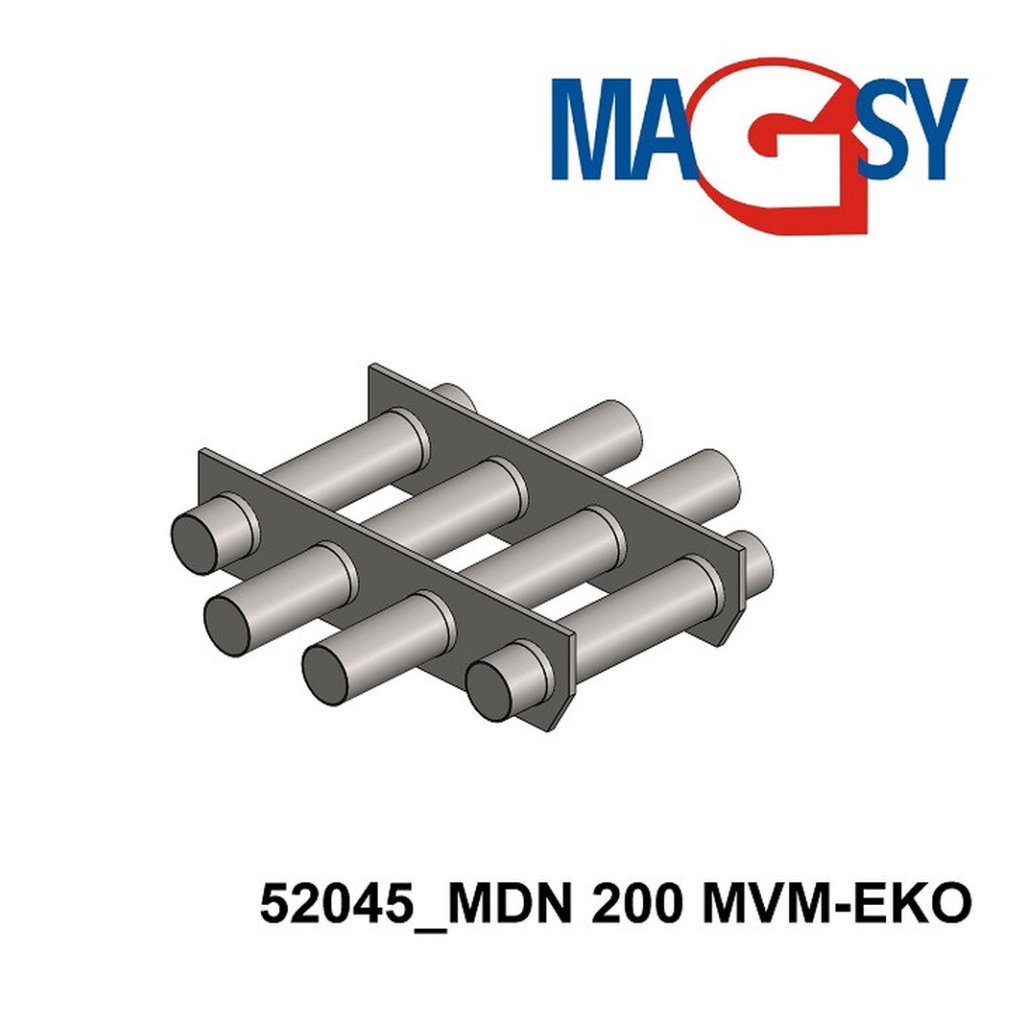

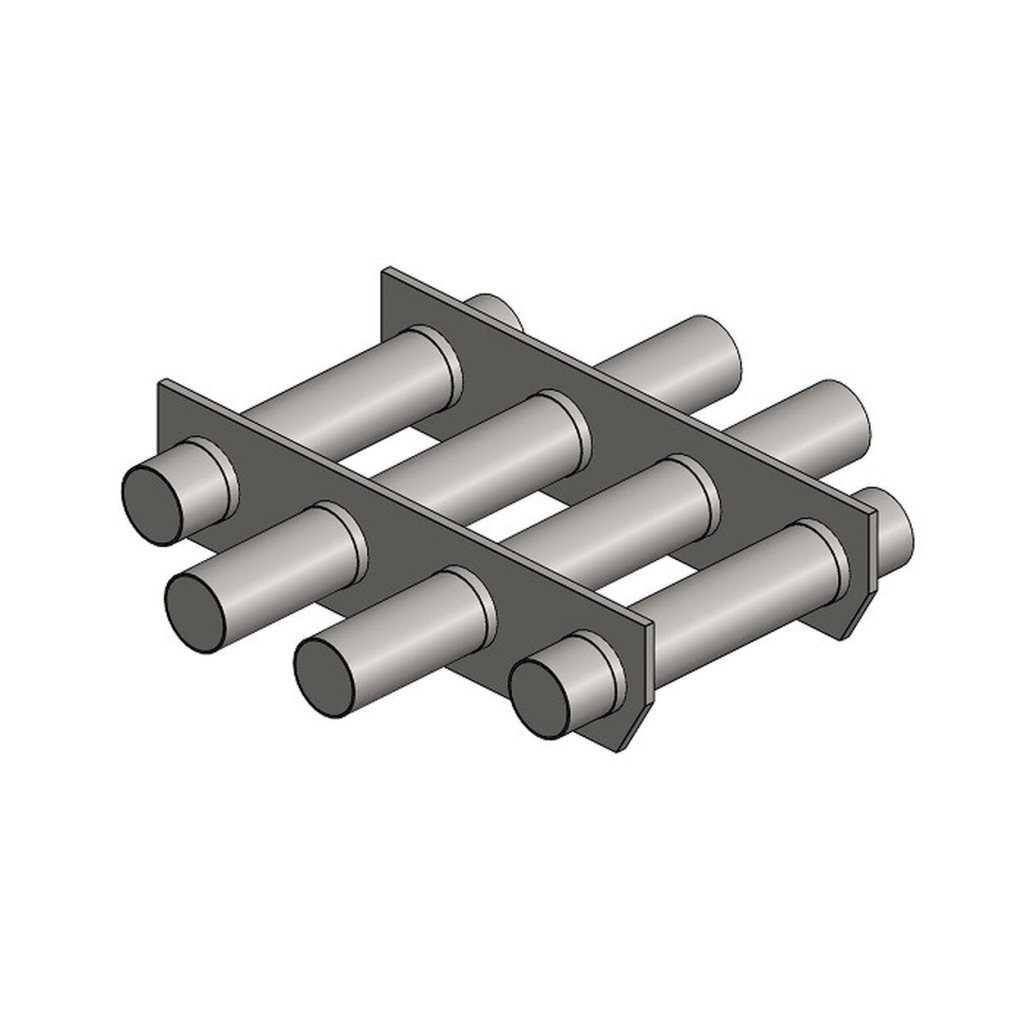

Magnet for injection moulding machine hopper MDN 200 MVM-EKO

Doprava nad 1000 Kč ZDARMA

Before ordering a product, read the Safety and Handling Conditions, please.

In Stock
We'll send on Thursday
€490.42/pc Tax excluded

Data sheet

Material stainless steel DIN 1.4301 /AISI 304 / ČSN 1724 0
Temperature resistance 80 °C
Marking MDN 200 MVM-EKO
Surface treatment Glass bead blasting
Number of magnetic bars 4
Tube magnetic force 4,600 Gs
Tube tearing force 46 N
Total weight 1,6 kg
Product state New
Design ECO
Magnetic force at distance of 1 mm 3,700 Gs
Magnetic force at distance of 5 mm 1,600 Gs

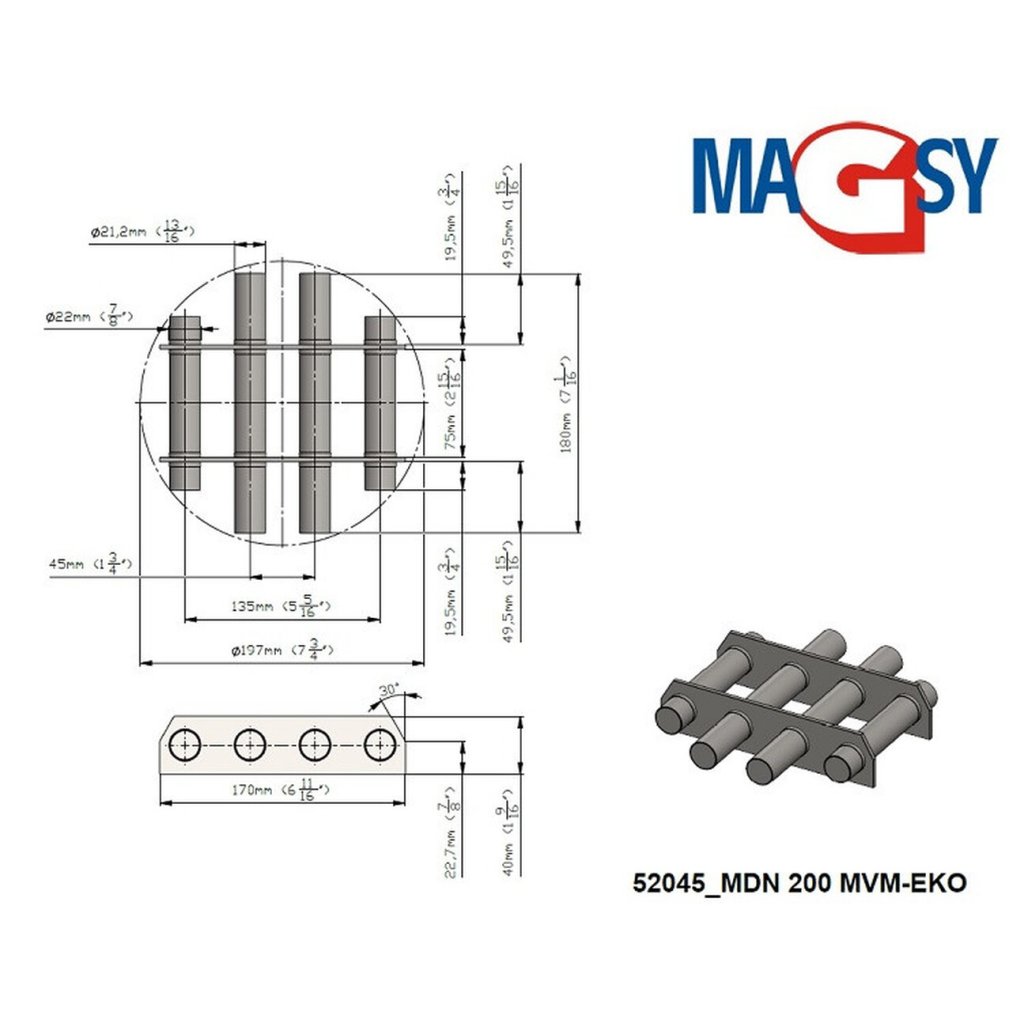

Diameter DN 200
Suitable for food industry YES

Additional description

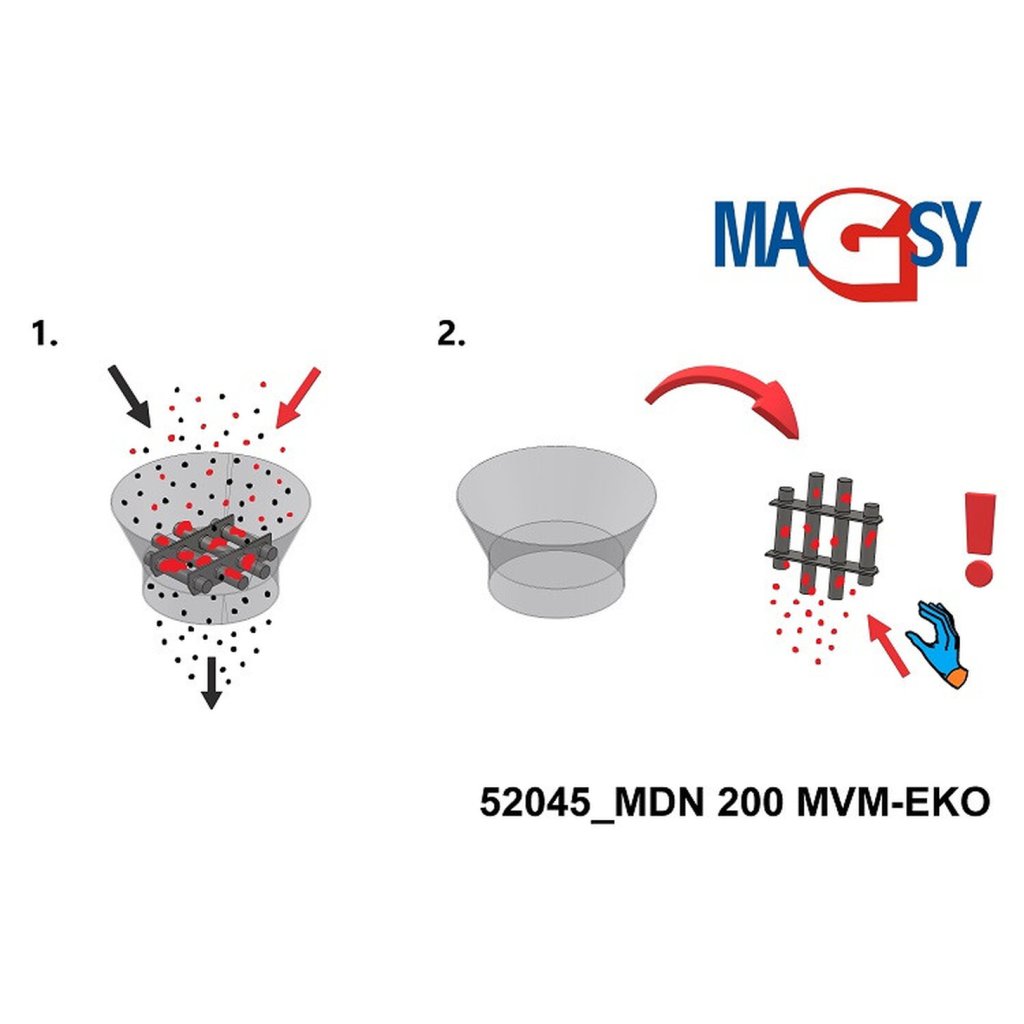

Magnet to be used in injection molding machine hoppers is designed for a separation of ferromagnetic impurities from dry mixtures, characterized by good loose parameters.
The device includes 4 rods, neodymium magnets are parts of the supply.
Magnet to be used in injection molding machine hoppers is manufactured using DIN 1.4301 stainless steel.
Maximum working temperature of this separator is 80 °C, total weight is 1.6 kg.

For more information please see: (It will open in a new window)
