Magnet for injection moulding machine hopper - UP - model M

Doprava nad 1000 Kč ZDARMA

Magnet for injection moulding machine hopper - UP - model M
Before ordering a product, read the Safety and Handling Conditions, please.

In Stock
We'll send tomorrow
€403.22/pc Tax excluded

Data sheet

Description plastic corpus ABS (Acryl-Butadien-Styrol)
Material ABS
Marking MDN 320 MVM UP – M
Number of magnetic bars 3
Magnetic bar diameter 23 mm
Tube magnetic force 3,900 Gs
Tube tearing force 36 N
Total weight 1,5 kg
Magnet temperature resistance 70 °C
Product state New
Design UP
Magnetic force at distance of 1 mm 2,690 Gs
Magnetic force at distance of 5 mm 1,230 Gs

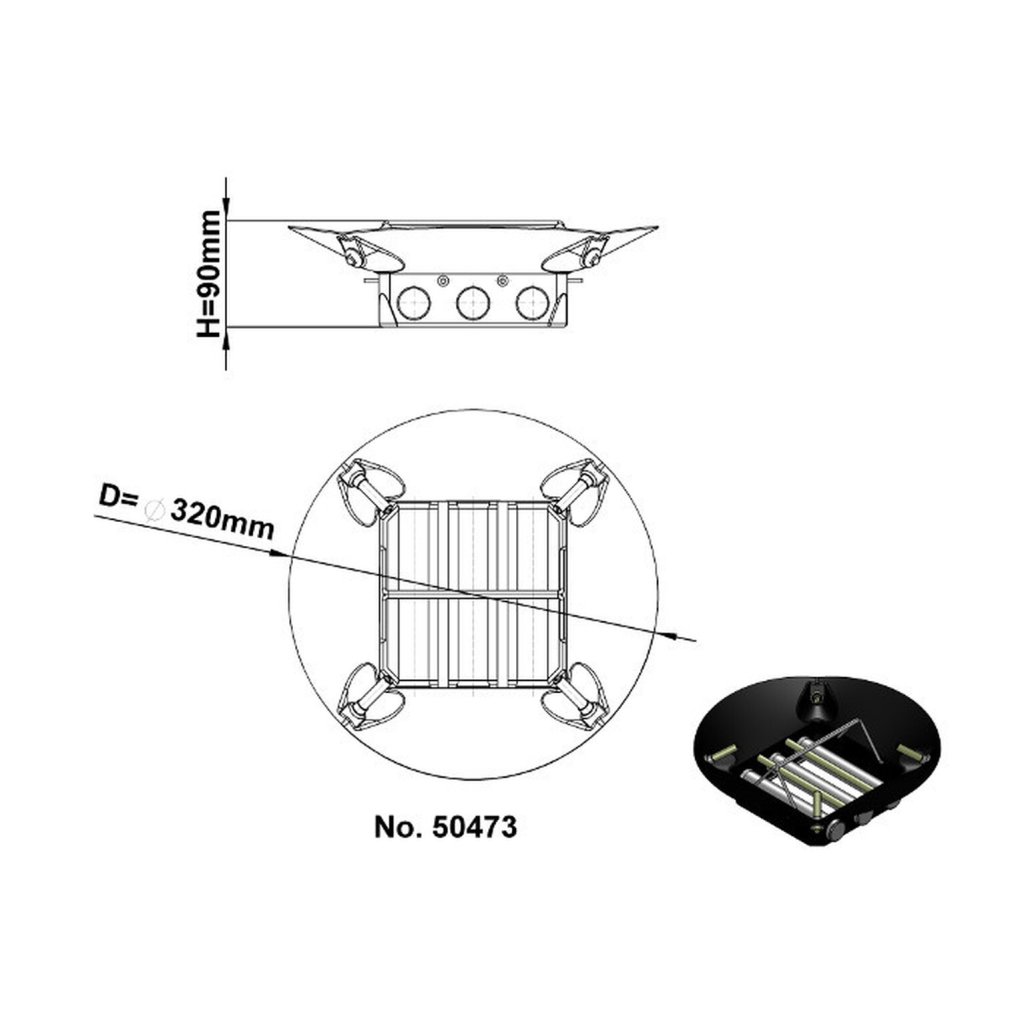

Diameter DN 320
Magnet type Neodymium (NdFeB)
Suitable for food industry NO

Additional description

The reported tear force values for some products were measured under ideal conditions given by the test environment. However, these values may vary depending on the specific type of environment where, for example, operating conditions and subsequent wear may affect the effectiveness of the product. However, measurements have not been made for all products and in such cases are only an estimate or internal auxiliary calculation by the vendor. The values quoted are therefore to be considered as indicative and the Seller declares that they are not a description of the goods in terms of the agreed characteristics in the sales contract on the basis of Article 6(a) of Directive (EU) 2019/771 of the European Parliament and of the Council of 20 May 2019 on certain aspects of contracts for the sale of goods, amending Regulation (EU) 2017/2394 and Directive 2009/22/EC and repealing Directive 1999/44/EC. In order to determine the exact value of the tear force in a specific case, it is necessary to carry out the actual measurement. In case the detected values of the breakaway force are not sufficient for you, as they do not correspond to the stated values, you can take advantage of the guaranteed return option within 30 days under the conditions stated here: and purchase a stronger magnet. These 30 days are just for testing the goods, after which the seller can refuse the return.
