Magnet for injection moulding machine hopper MDN 250 MVM-EKO

Doprava nad 1000 Kč ZDARMA

Magnet for injection moulding machine hopper MDN 250 MVM-EKO
You do not have to hesitate with us
E-shop number 11 with magnets
4,000,000+ magnetsin our stock
In Stock
We'll send tomorrow
52015
8595133939775
€333.18/pc Tax excluded

Data sheet

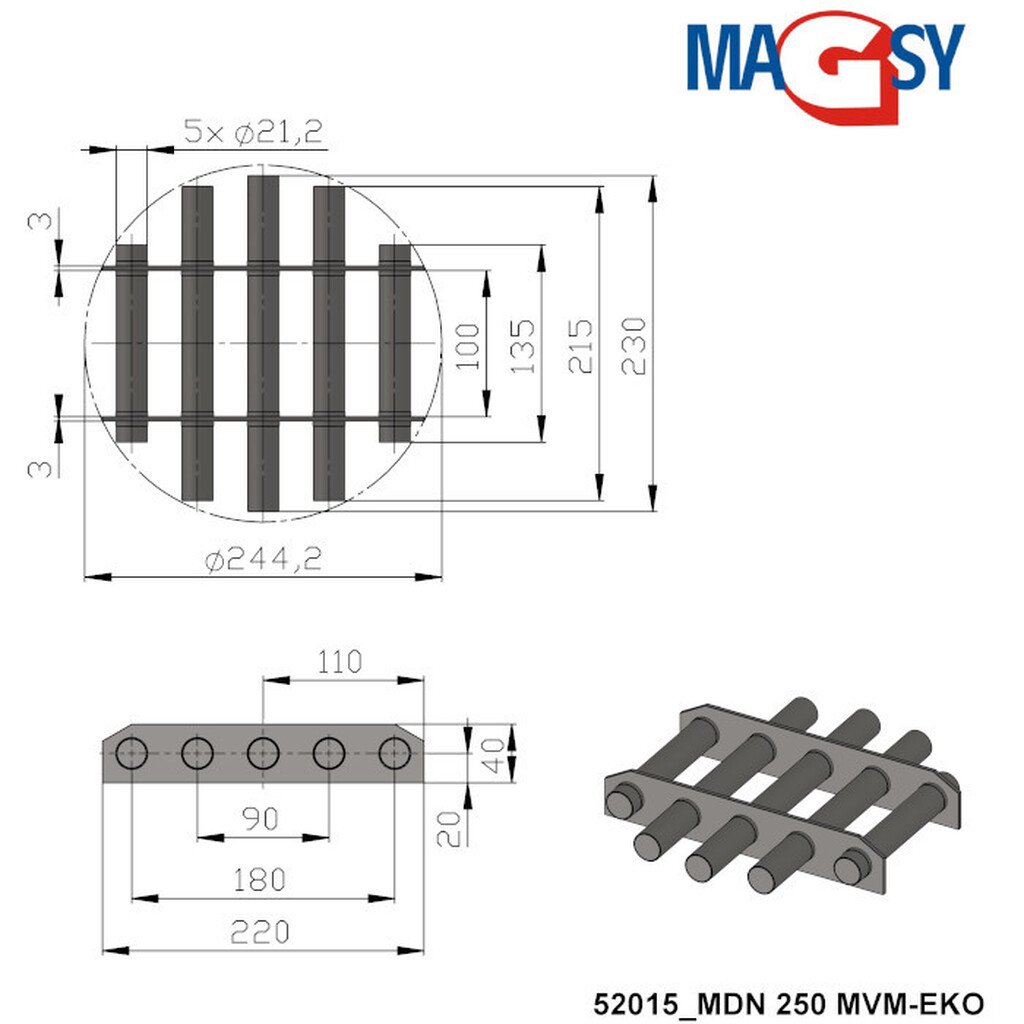

Diameter (mm) 250
Material Stainless steel
Temperature resistance 80 °C
Marking MDN 250 MVM-EKO
Weight (kg) 2,5
Number of magnetic bars 5
Product state New
Design ECO

Additional description

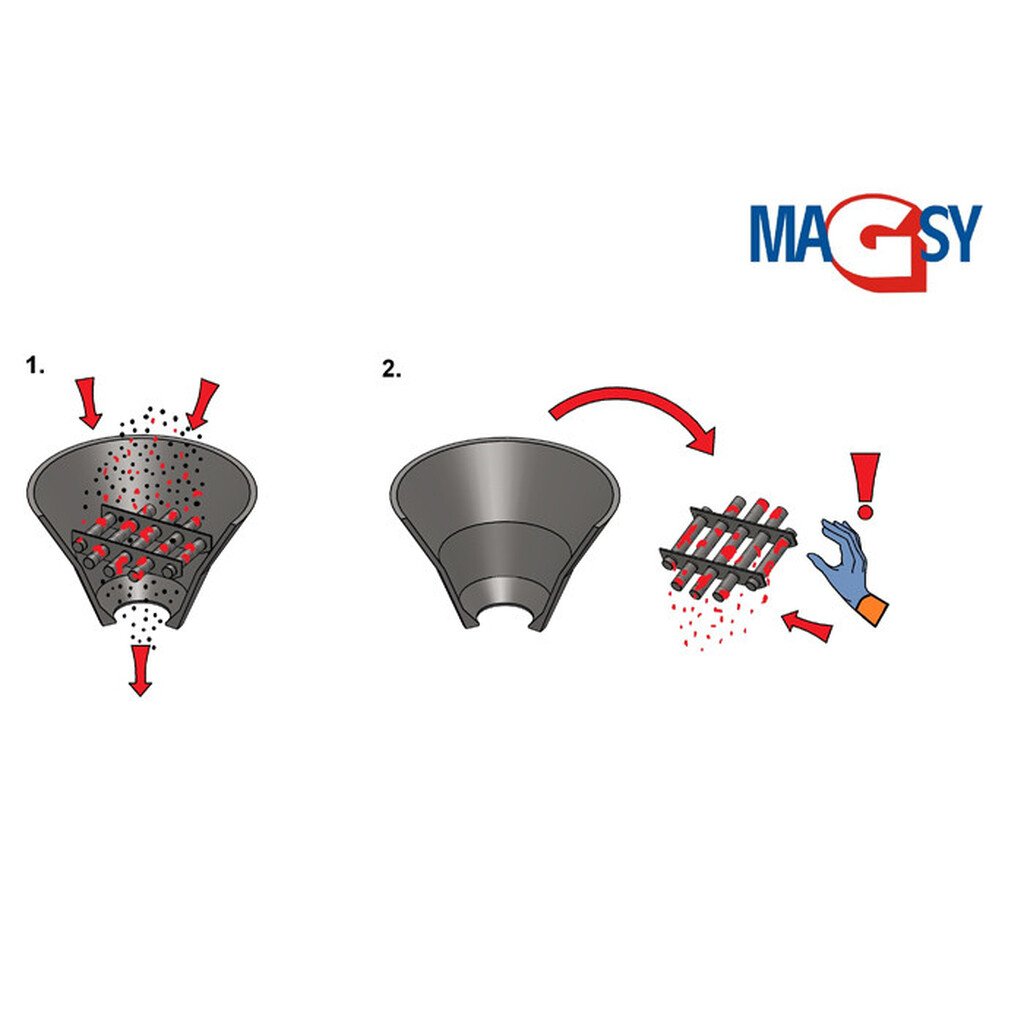

Magnet to be used in injection molding machine hoppers is designed for a separation of ferromagnetic impurities from dry mixtures characterized by good loose parameters.

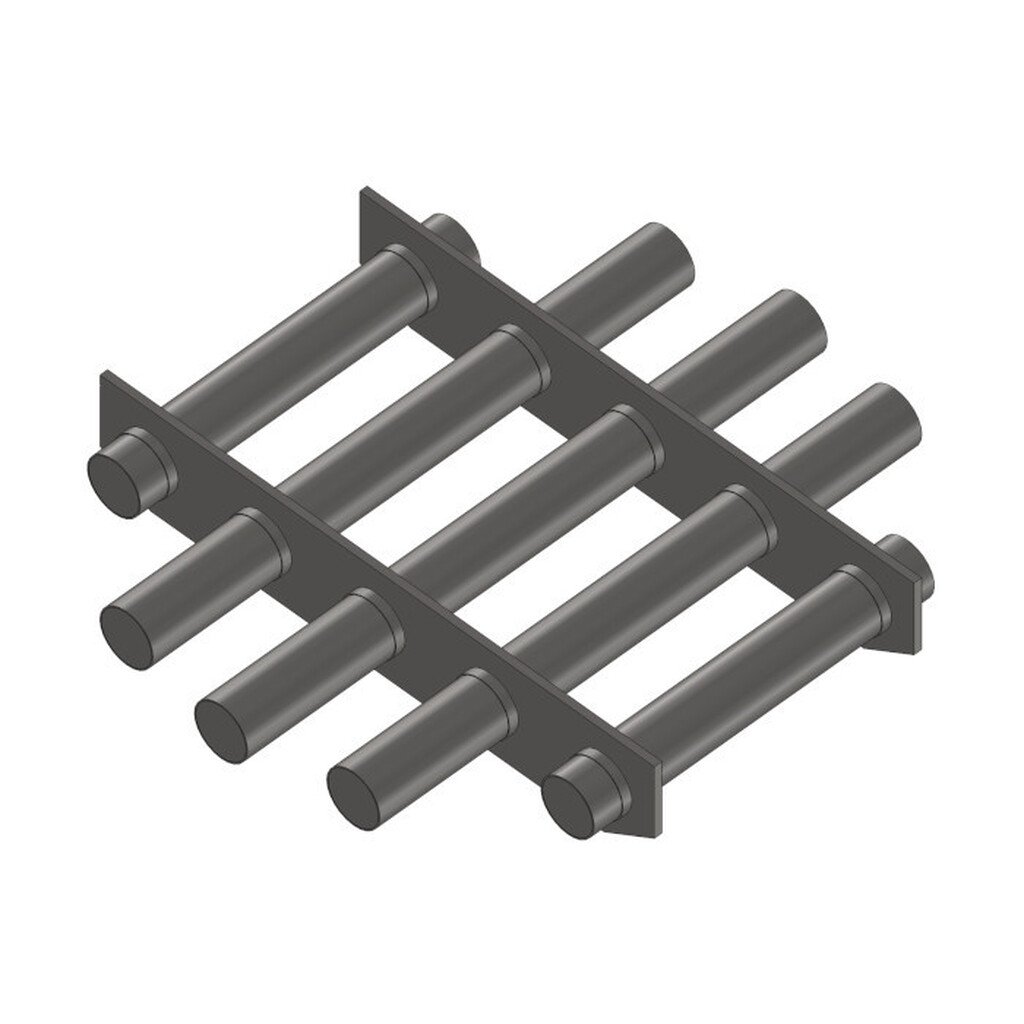

The device contains 5 rods; neodymium magnets are included.
Magnet to be used with injection molding machine hoppers is manufactured using DIN 1.4301 stainless steel.
Magnetic induction on the coat is 4600 G; coat tear-off force is 60 N.
Magnetic separator body is surface-treated by polishing.
Maximum working temperature of this separator is 80 °C, total weight is 2.5 kg.


For more information please see: www.magnetic-separators.info (It will open in a new window)
