Magnetic grid / finger magnet MRZ 150x120x60-3 VVM-1-80-P
You do not have to hesitate with us
E-shop number 11 with magnets
4,000,000+ magnetsin our stock
In Stock
We'll send today
51950
8595133938785
€1,251.86/pc Tax excluded

More detailed text can be found HERE

Data sheet

Material stainless steel DIN 1.4301 /AISI 304 / ČSN 1724 0
Surface treatment Glass bead blasting
Number of magnetic bars 3
Magnetic bar diameter 31 mm
Tube magnetic force 7,400 Gs
Tube tearing force 100 N
Total weight 7 kg
Length 407 mm
Width 150 mm
Height 128 mm
Magnet temperature resistance 80 °C
Product state New
Magnet type Neodymium (NdFeB)

Additional description

This magnetic grate is designed for a separation of ferromagnetic impurities from both liquid and dry mixtures.

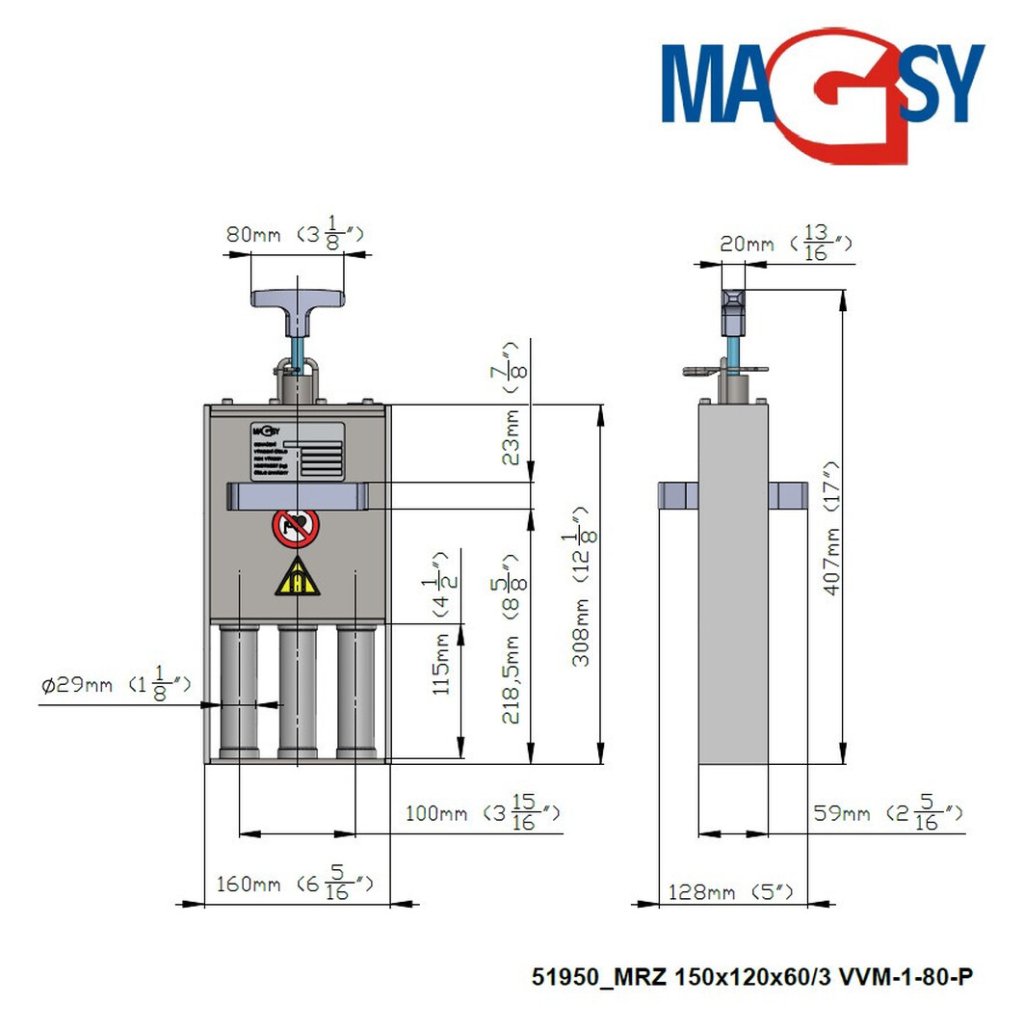

Grate dimensions are 150x120x60 mm; the assembly includes 3 pipes.
The grate includes neodymium magnets.
Magnetic grate is manufactured using DIN 1.4301 stainless steel.
Magnetic induction is on the level No. 1 (core magnetic induction: 10400 G, core tear-off force: 133 N, coat magnetic induction: 7400 G, coat tear-off force: 100 N).
Maximum working temperature of this grate is 80°C.
Both grate and pipe are surface-treated with sanding.
Total weight of the grate is 7 kg.

A great advantage of this magnetic grate is water-tightness.

For more information please see: www.magnetic-separators.info (It will open in a new window)
