Magnetic grid / finger magnet MR 175x175x50/3 VVM ECO

Doprava nad 1000 Kč ZDARMA

  • Online only
You do not have to hesitate with us
E-shop number 11 with magnets
4,000,000+ magnetsin our stock
More benefits
In Stock
We'll send tomorrow
51579
8595133919753
€746.80/pc Tax excluded

Have a question?
Ask our experts
Transport options
More detailed text can be found HERE

Data sheet

Material stainless steel DIN 1.4301 /AISI 304 / ČSN 1724 0
Surface treatment Glass bead blasting
Number of magnetic bars 3
Magnetic bar diameter 31 mm
Tube magnetic force 7,400 Gs
Tube tearing force 100 N
Total weight 4 kg
Magnetic core weight 2,8 kg

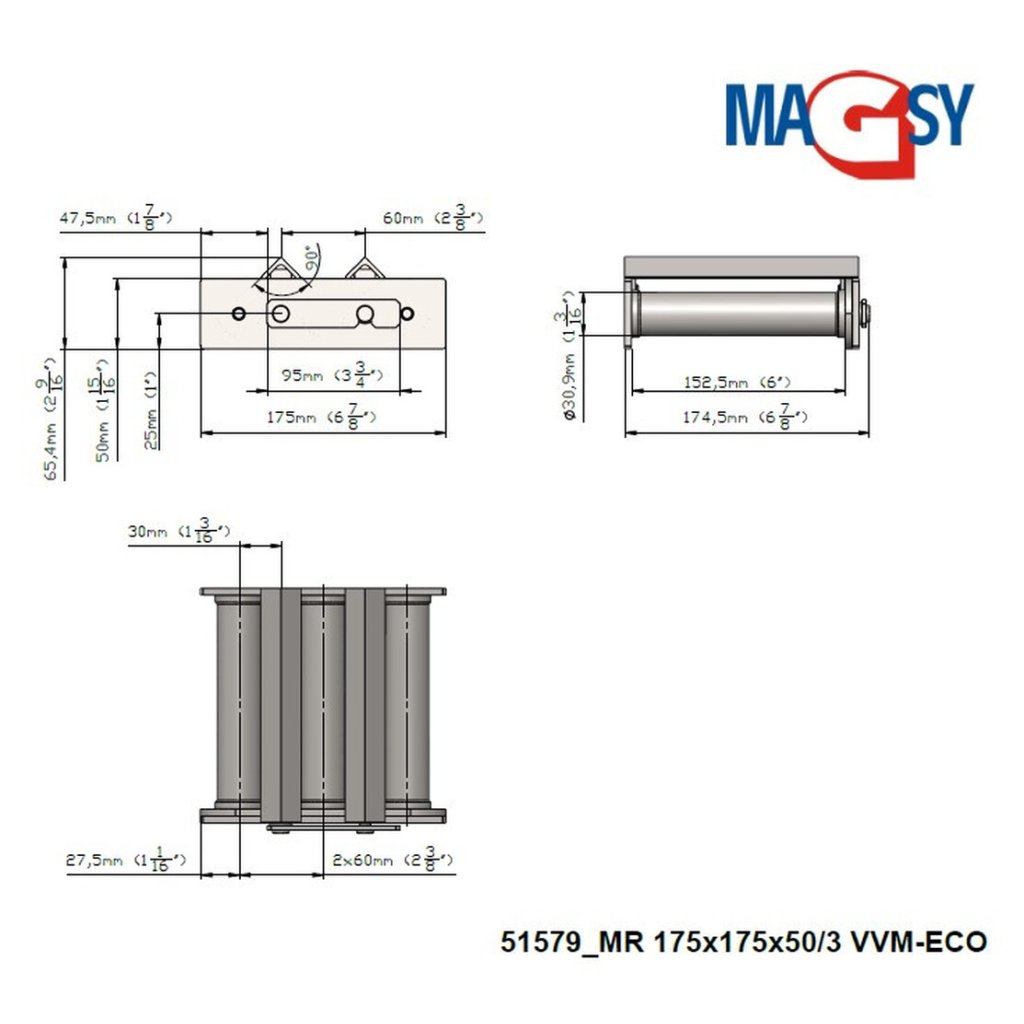

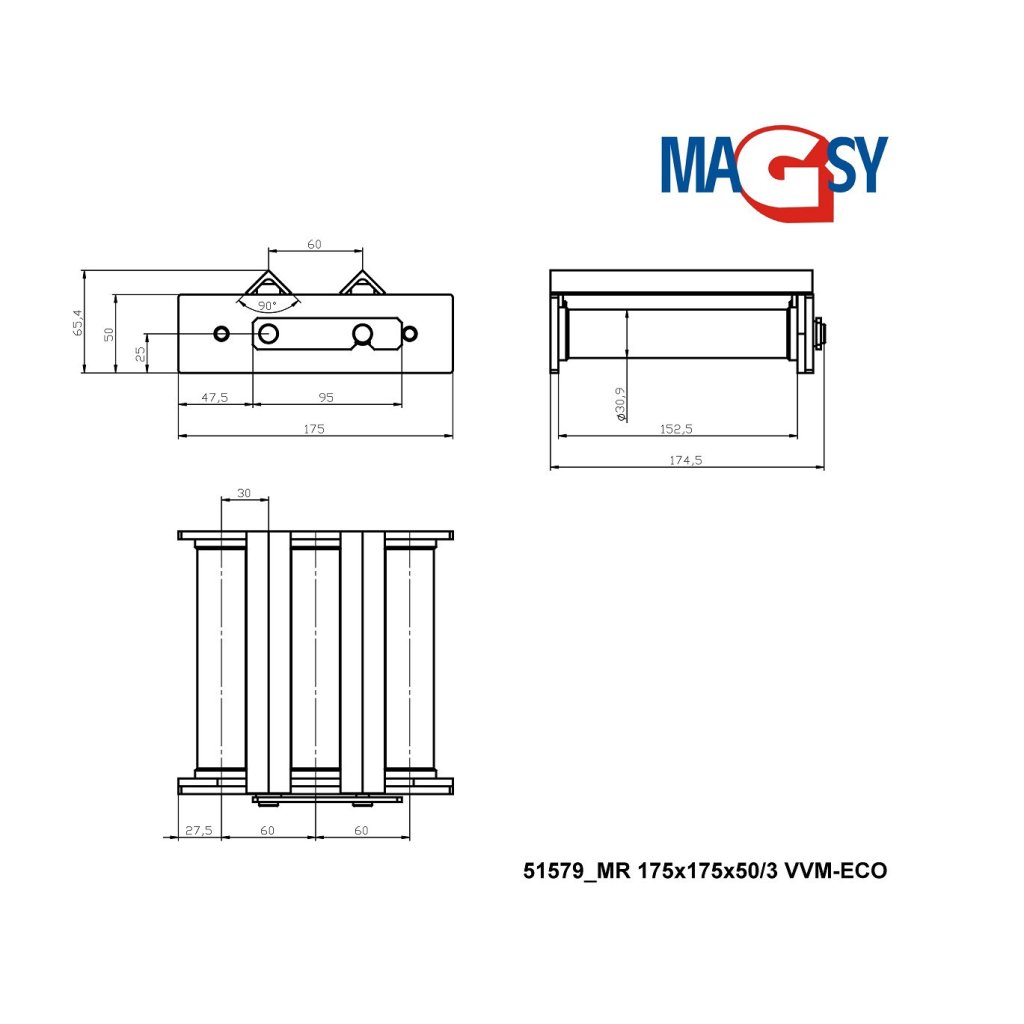

Length 175 mm
Width 175 mm
Height 50 mm
Magnet temperature resistance 80 °C
Product state New
Magnet type Neodymium (NdFeB)

Additional description

Magnetic grate is equipped with very strong neodymium magnets. It is suitable for separation of even very fine metal particles. Complete magnetic separator design – stainless steel 1.4301 / AISI 304 (suitable for foodstuff industry). The separator surface treatment is represented by sanding.

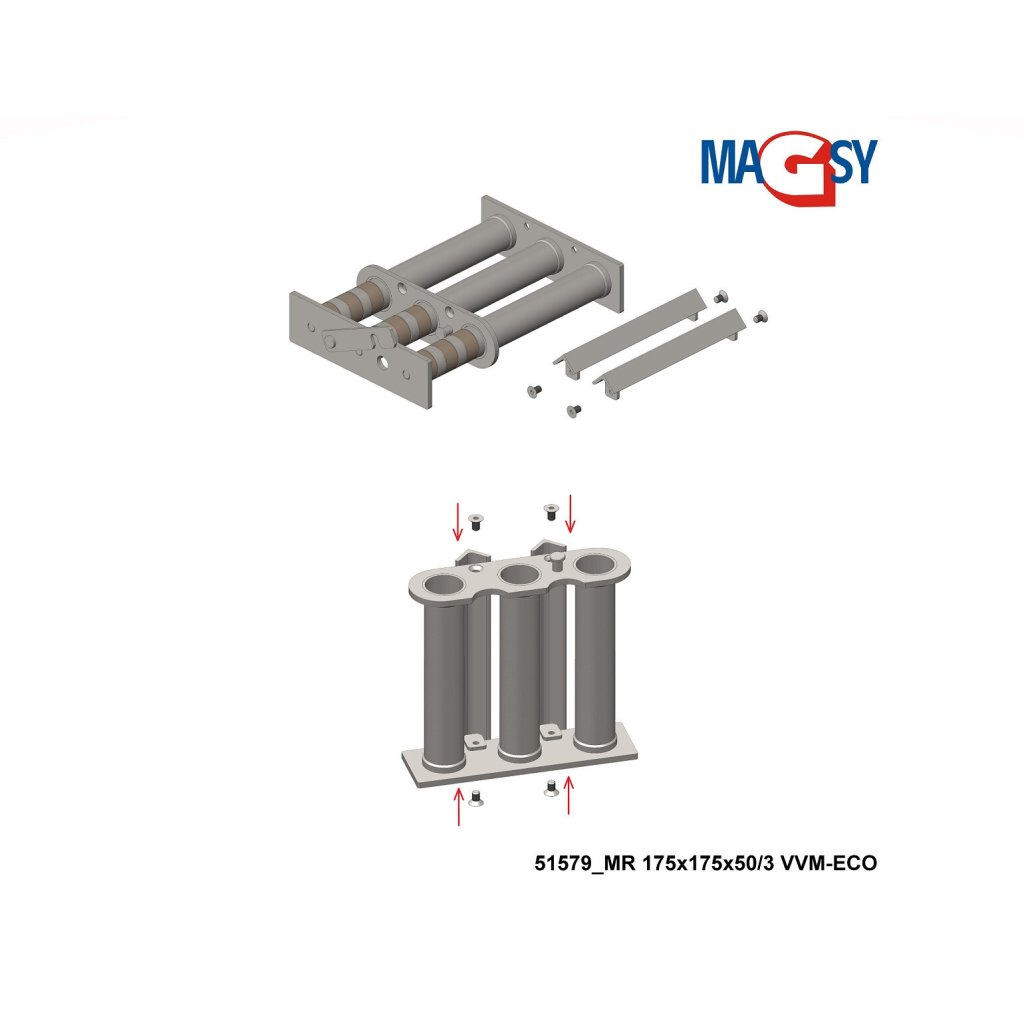

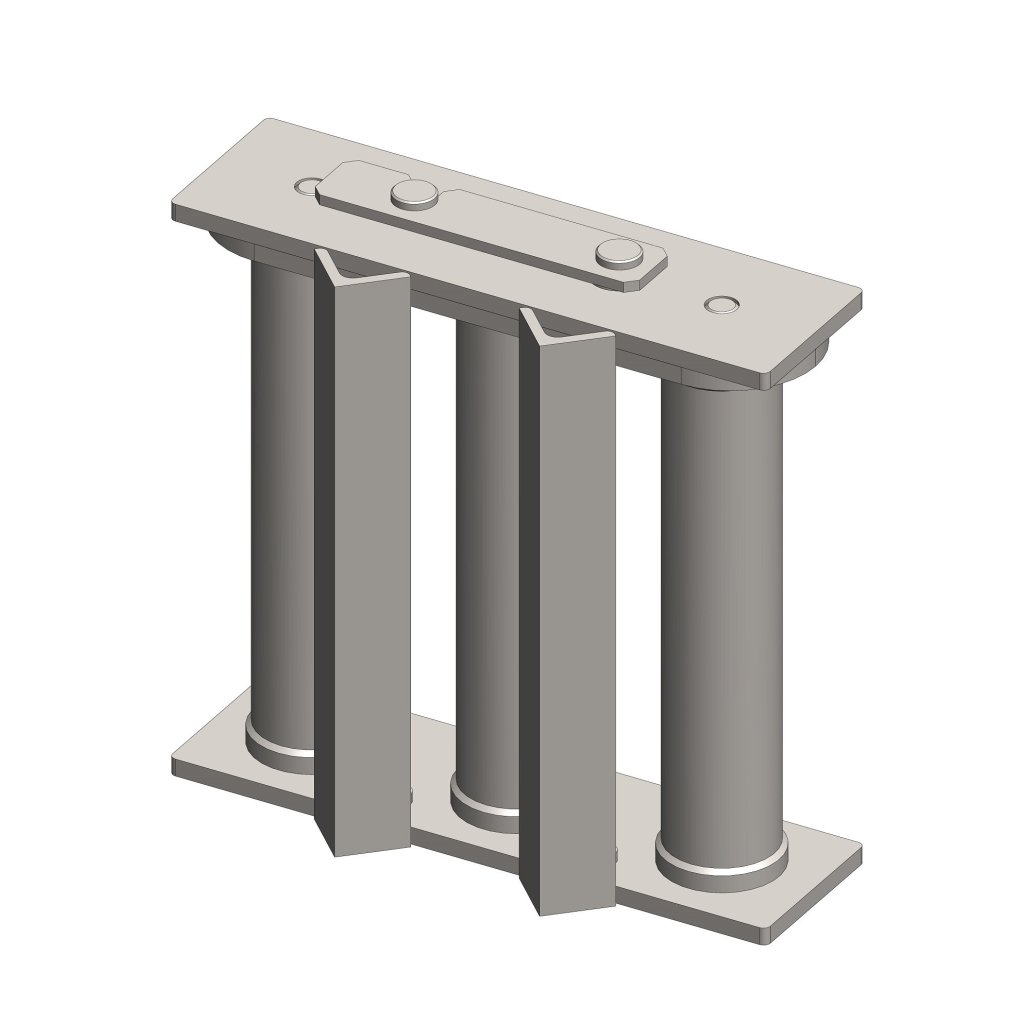

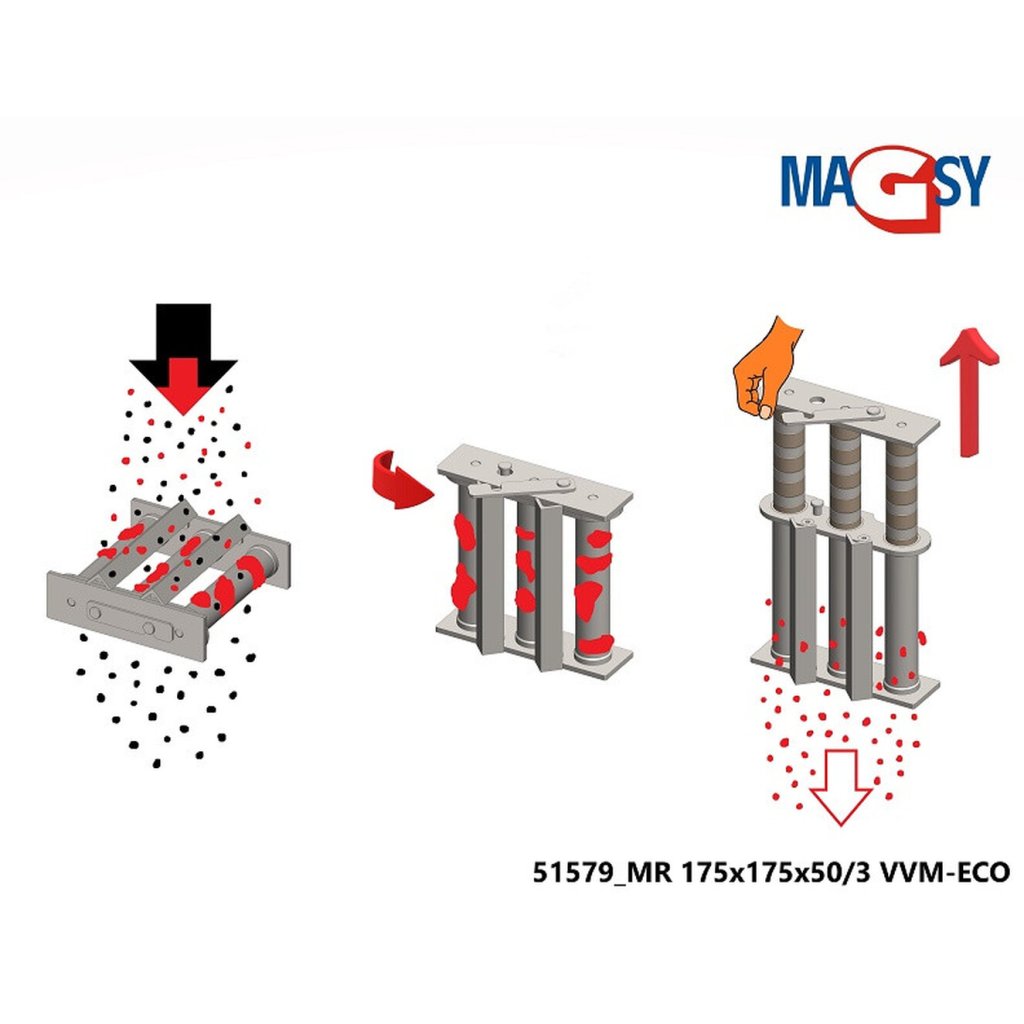

Magnetic grate consists in magnetic cores covered by stainless-steel pipes. The cores are ensured against spontaneous pulling out using a clip. A great advantage of this magnetic grate (in comparison with magnetic rods) consists in a possibility of simple grate cleaning (by pulling magnetic cores out of the stainless-steel pipes). Magnetic grate can be easily completed with small spreading roofs (see the product No. 51580) facilitating equal directing of separated material onto magnetic pipes. This leads to even better magnetic separation results (forming of a dropping labyrinth). Magnetic grate is manufactured in a manner that these small spreading roofs may be attached to it quite easily, just using 4 screws.
