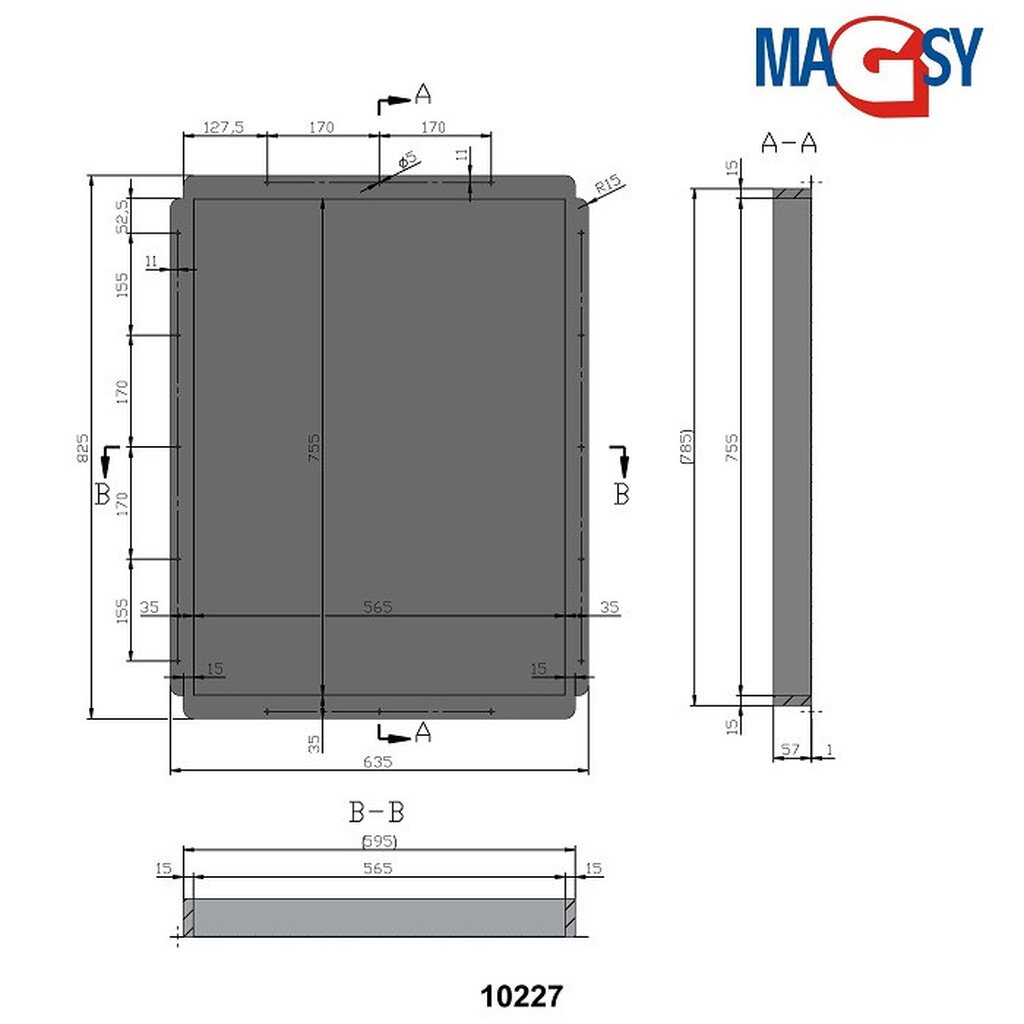

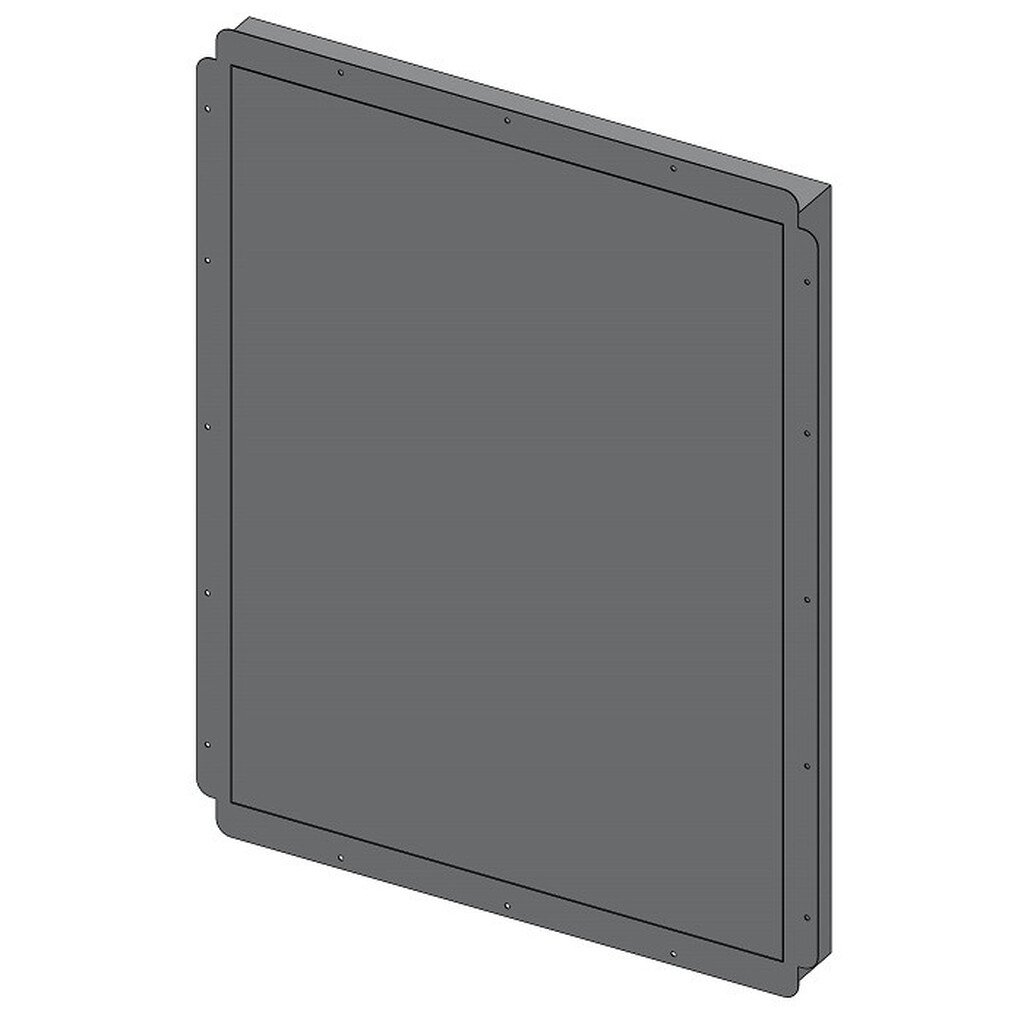

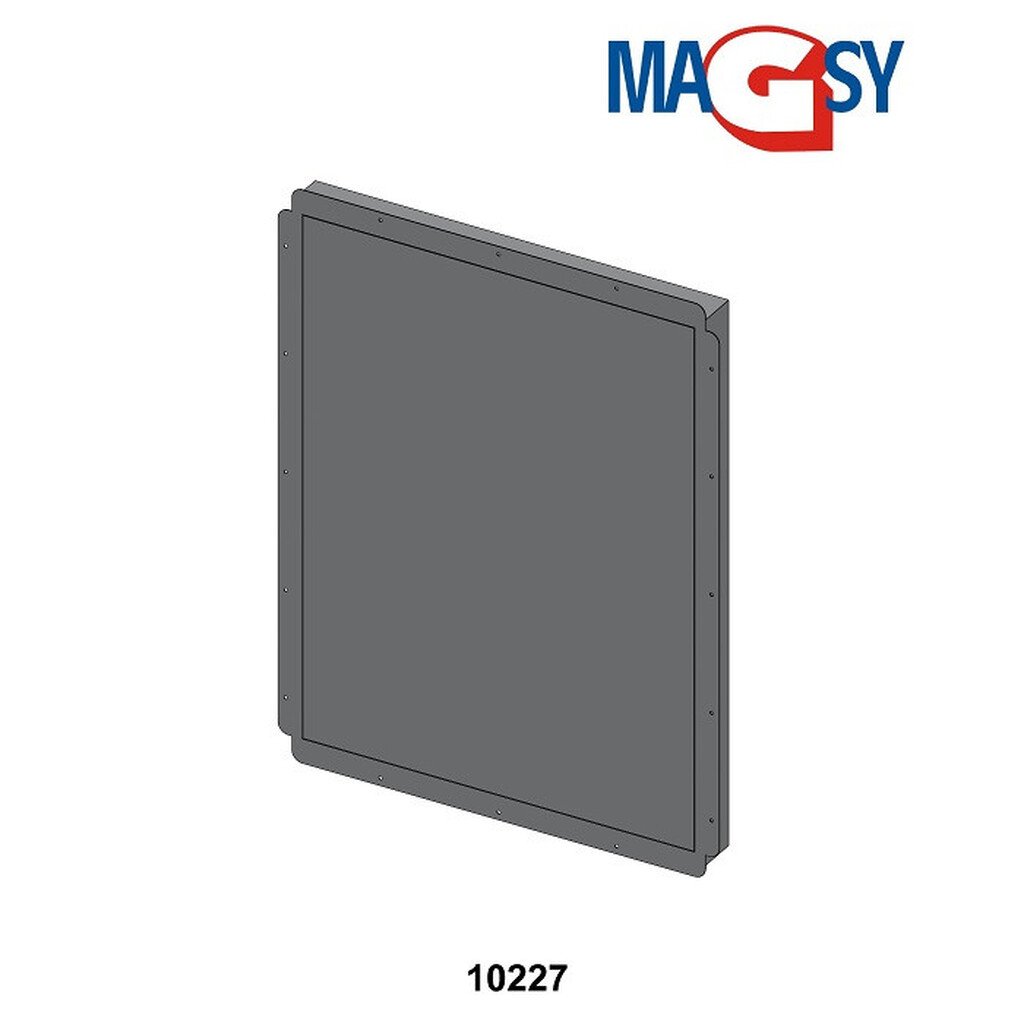

Magnetic door UP 600x800 mm

Inspection doors under the tiling – mounting procedure PDF

Technical Sheet

Supplier:

MAGSY, s.r.o.
Holešovská 457
763 16 Fryšták
[email protected]
Company ID: 26230224

Inspection Door under Facing RD-AL/S

Basic Material Composition

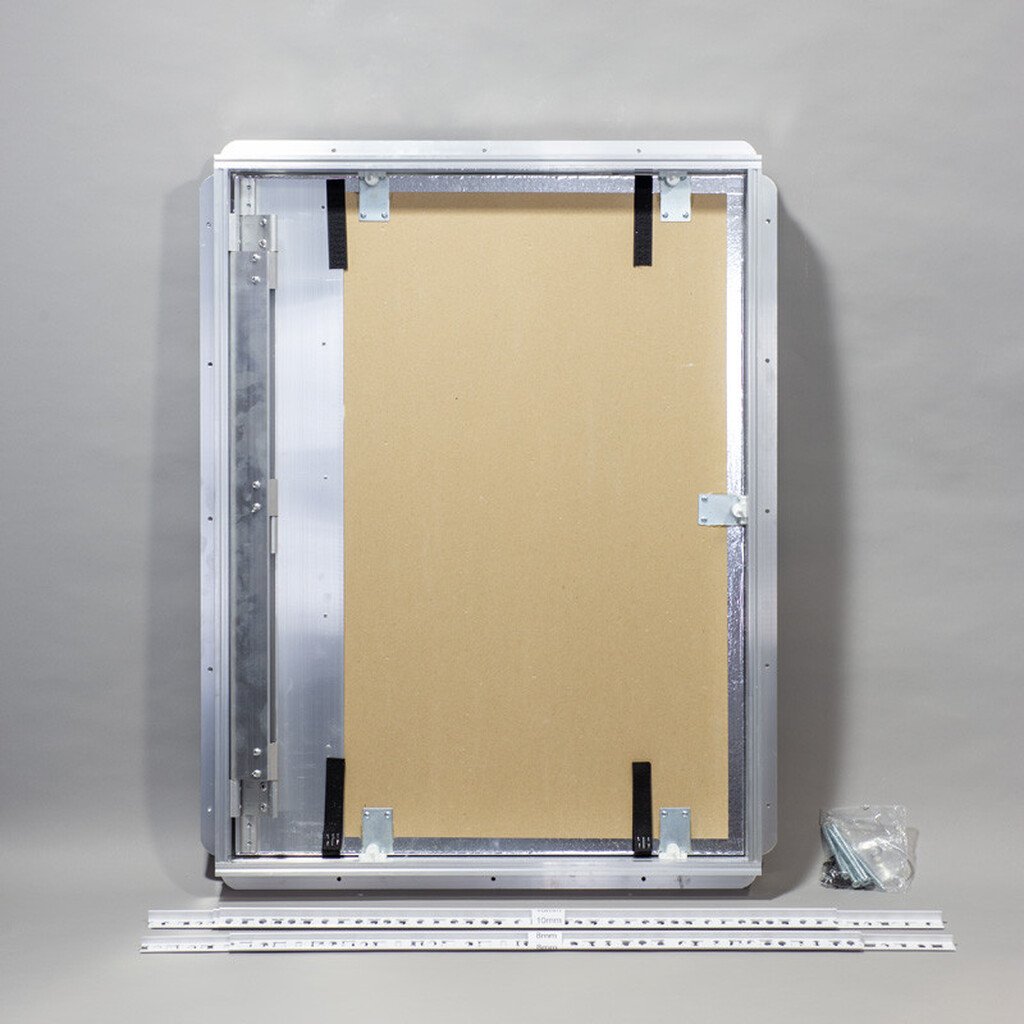

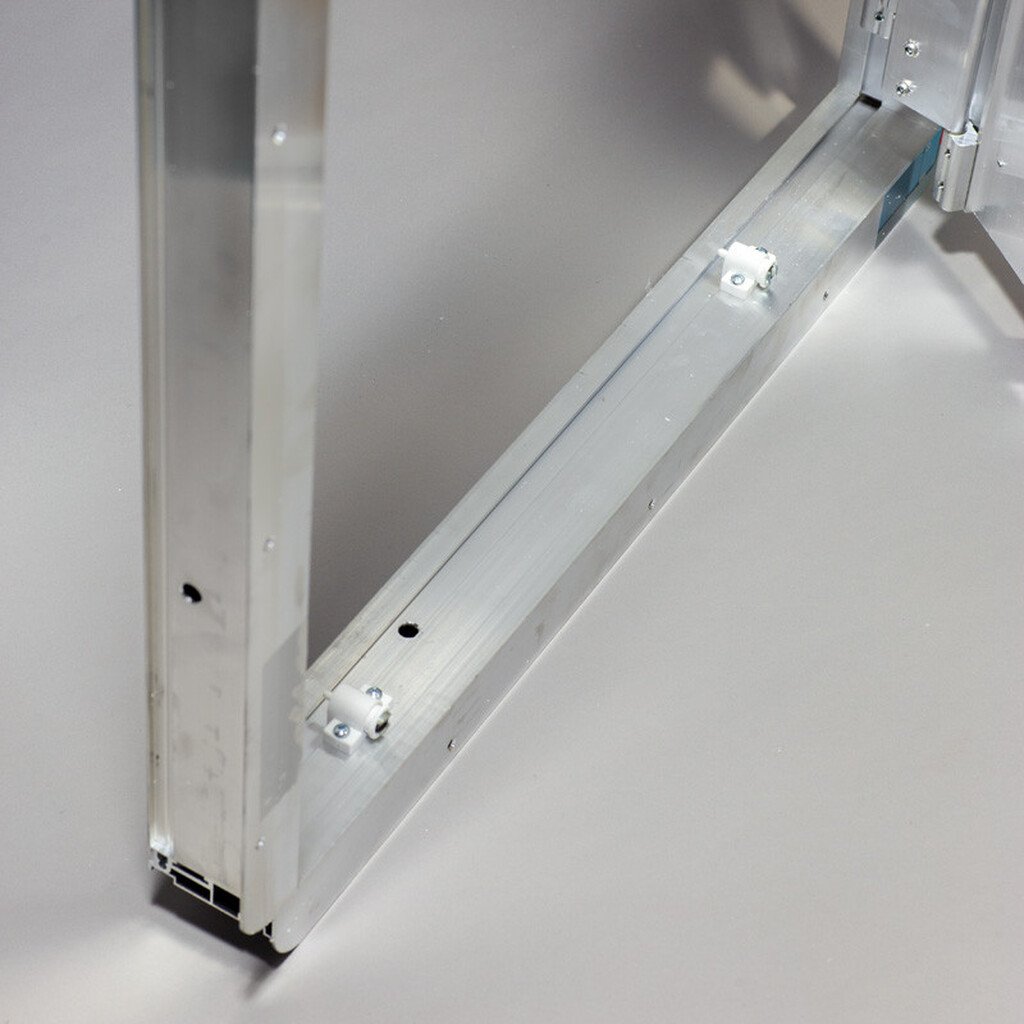

Circumferential frame and hinge - aluminium alloy - EN AW 6060 T66, Tolerance EN 755-9

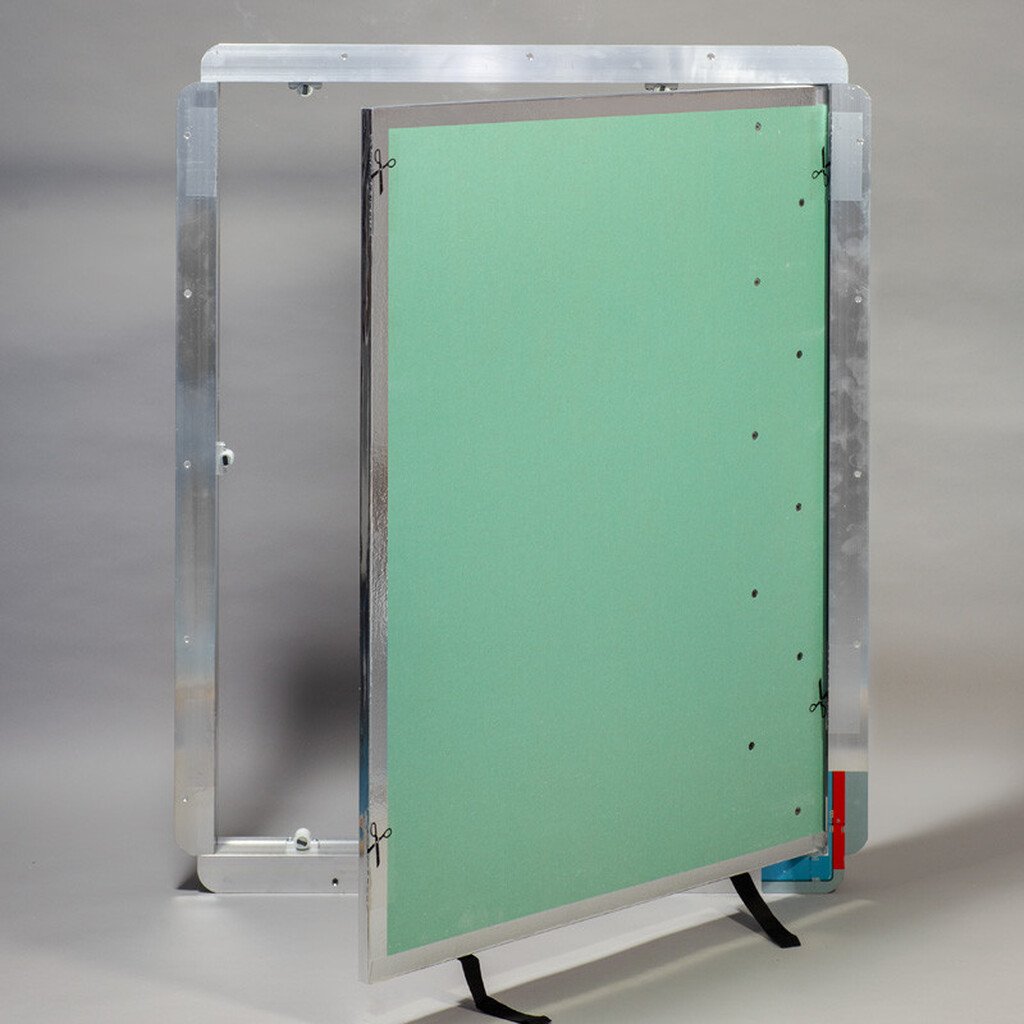

Door leaf - Impregnated construction plasterboard (Knauf GREEN 12.5)

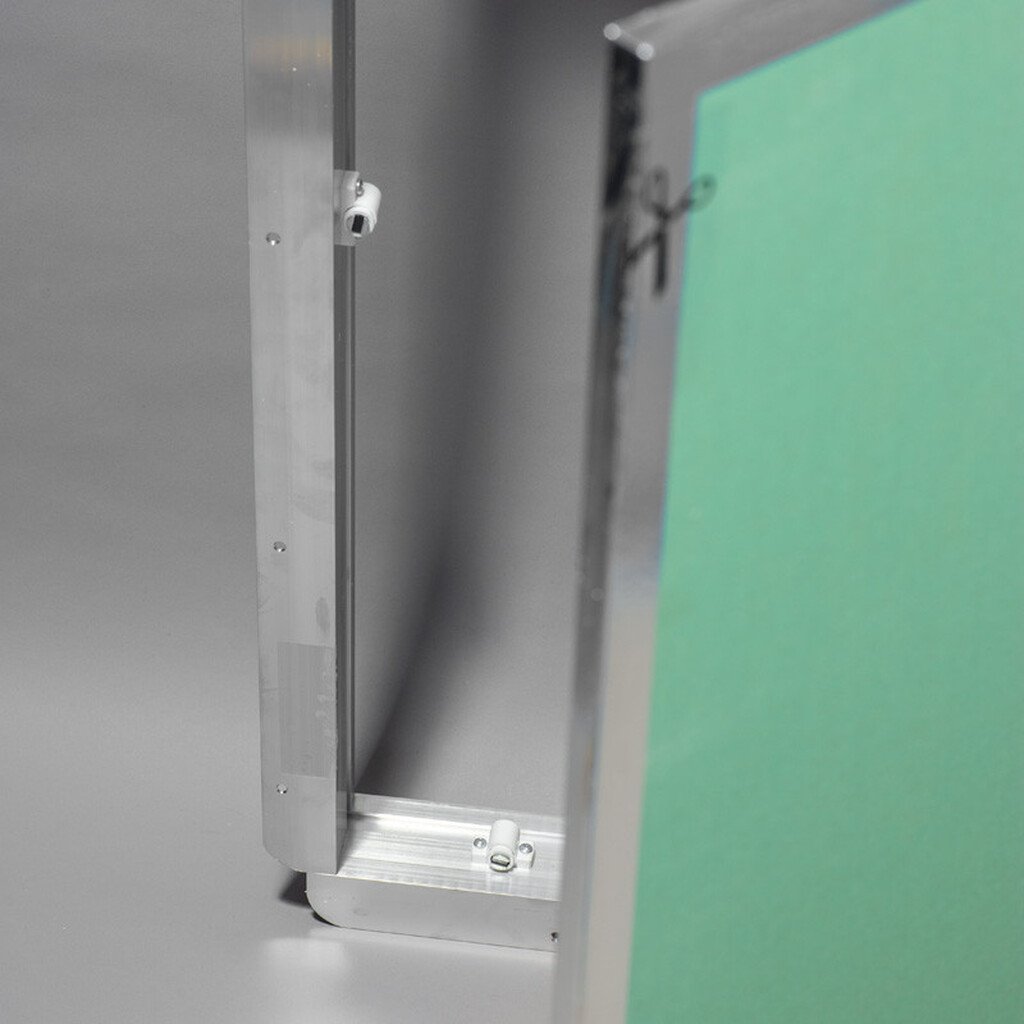

Magnets - Ferrite magnet anisotropic (height-adjustable)

Technical Parameters

Range of dimensions in mm - 400x600, 400x750, 400x800, 500x660, 500x800, 500x900, 500x990, 600x600, 600x750, 600x800, 600x900.

At the customer's request, doors with other dimensions may be produced.
Suitable for larger inspection holes as well - for areas of up to 6,000 cm²

Product Application

The inspection door under facing is used to cover inspection holes in walls where final finishing with glued ceramic facing is required. They are installed in locations where it is necessary to have access to revisions or installations. They are designed to be installed in plasterboard systems or in solid masonry (YTONG system, etc.). The outer frame is mounted in the construction hole by means of the appropriate fasteners and opening plasterboard, attached to its aluminium hinges, allowing access to the wiring behind building structures. After being fitted, the door is lined with ceramic tiles.

The magnetic door is not designed to separate any fire sections or escape routes.

DECLARATION OF PRODUCT PROPERTIES N° E01b

Inspection Door under Facing RD-AL/S

(1) Product Identification Code: Product group E01b

(2) Catalogue Designation: E01b INSPECTION DOOR RD-AL/S

(3) Product Application: The magnetic door under facing serves as an installation aid for the inspection hole door assembly when final finishing with glued facing is required.

(4) Supplier: MAGSY, s.r.o., Holešovská 457, 763 16 Fryšták

Declarations:

We declare that there is no harmonised standard for the specified product - the product does not fall under CPR (Construction product regulation).

We declare that the product properties meet the safety and quality requirements. They meet the requirements arising from Act No. 102/2001 Coll. of 22 February 2001 on general product safety and amending certain acts, as amended (General Product Safety Act).

(9) Declared Properties:

CERTIFICATE - Number: J-32-20545-13, Final Report No. 32-9477

The basic characteristics and technical parameters are given in the technical sheet.

Accredited party involved in the Declaration of PRODUCT PROPERTIES:
STROJÍRENSKÝ ZKUŠEBNÍ ÚSTAV, s. p.
Jablonec nad Nisou Branch
Tovární 5, 466 21 Jablonec nad Nisou

The technical sheet is an integral part of the Declaration of PRODUCT PROPERTIES.
This Declaration of PRODUCT PROPERTIES is issued at the sole responsibility of the supplier specified in item (4).
