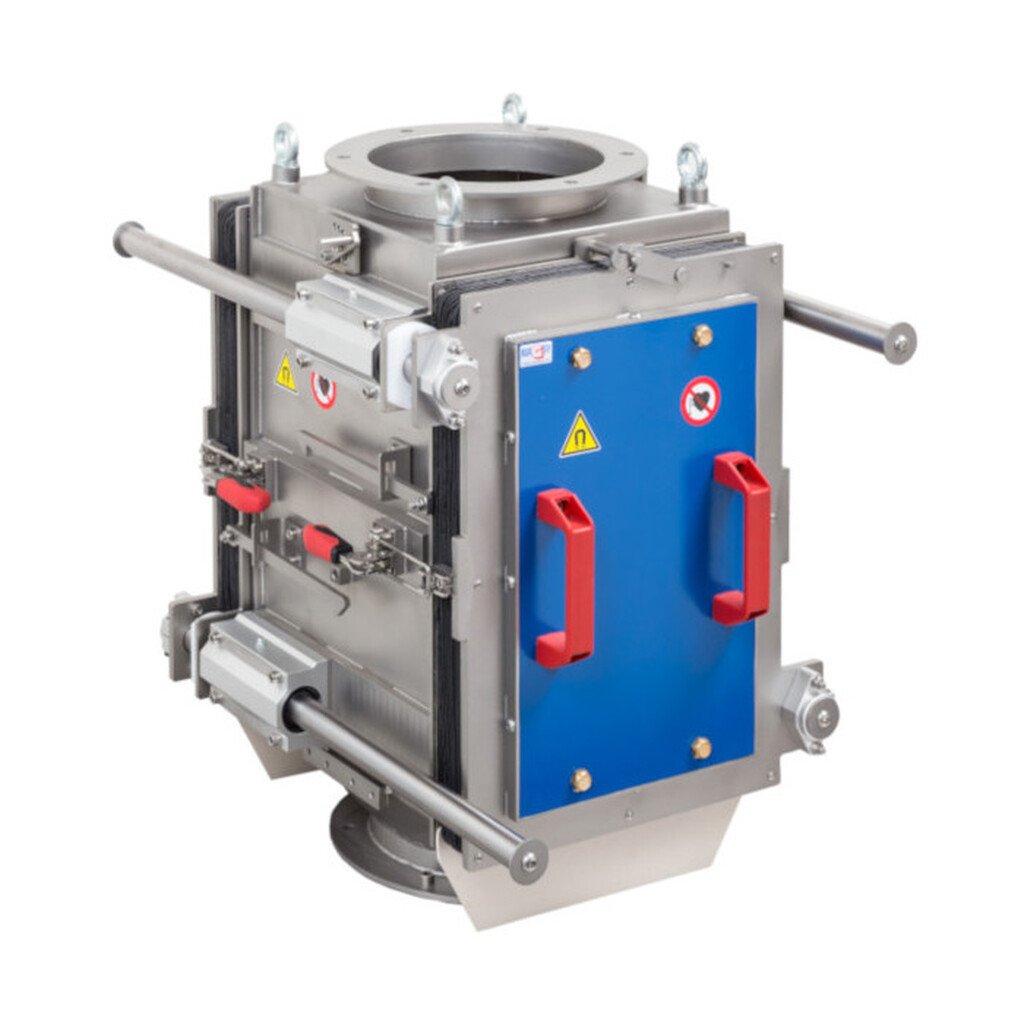

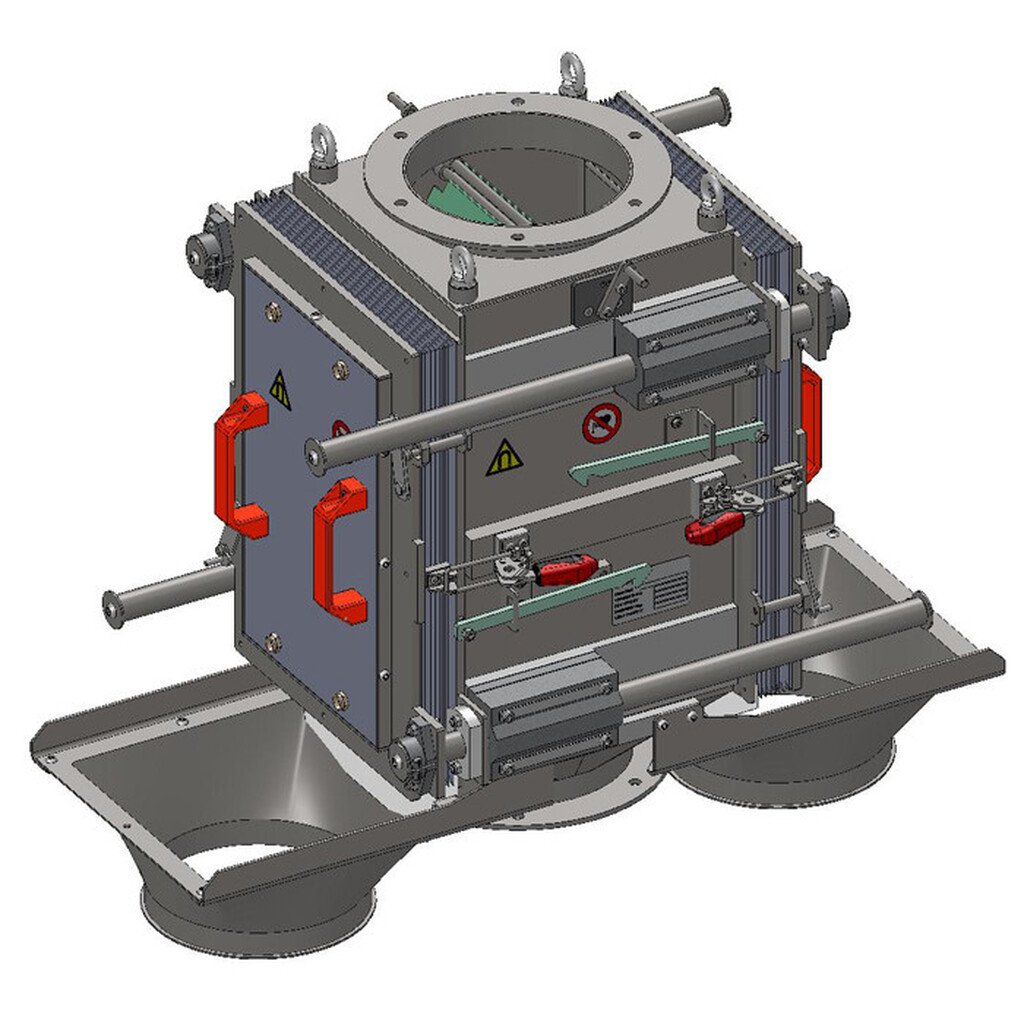

Plate magnetic separator MSP 200 F-UP-MODEL1

Doprava nad 1000 Kč ZDARMA

Plate magnetic separator MSP 200 F-UP-MODEL1
You do not have to hesitate with us
E-shop number 11 with magnets
4,000,000+ magnetsin our stock
In Stock
We'll send on Thursday
Last items in stock
51494
8595133934596
€6,000.00/pc Tax excluded

Data sheet

Material Stainless steel DIN 1.4301, EN 10088, (X5CrNi 18-10), ČSN 17240, AISI 304, AKV 7
Total weight 134 kg
Input/Output DN 200
Body surface finish Glass bead blasting
Tearing force 8.4 N
Magnetic force 1 560 Gs
Product state New
Design UP
Temperature resistance 150 °C (this is a temperature, which continuously affects the magnet; this is, however, not the temperature that continuously affects the complete product)
Termination Flange
