Plate magnetic separator MSP 200 F-R-P
Before ordering a product, read the Safety and Handling Conditions, please.

51149
8595133931274
In Stock
We'll send on Wednesday
€3,260.87/pc Tax excluded
In Stock
We'll send on Wednesday

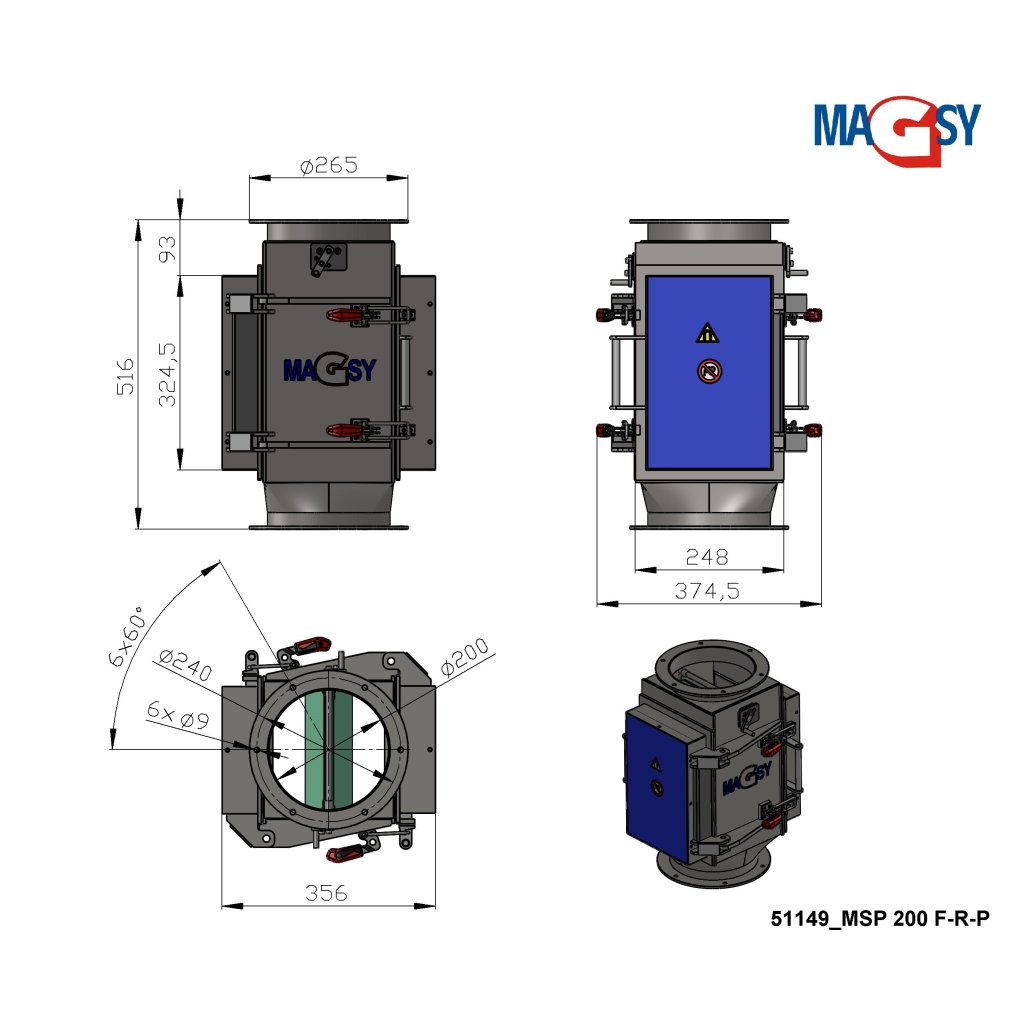

Data sheet

Material Stainless steel DIN 1.4301, EN 10088, (X5CrNi 18-10), ČSN 17240, AISI 304, AKV 7
Marking MSP 200 F-R-P
Total weight 80 kg
Input/Output DN 200
Body surface finish Glass bead blasting
Tearing force 9 N
Magnetic force 1.800 GS
Product state New
Design ECO
Magnet type Ferrite
Temperature resistance 150 °C (this is a temperature, which continuously affects the magnet; this is, however, not the temperature that continuously affects the complete product)
Termination Flange

Additional description

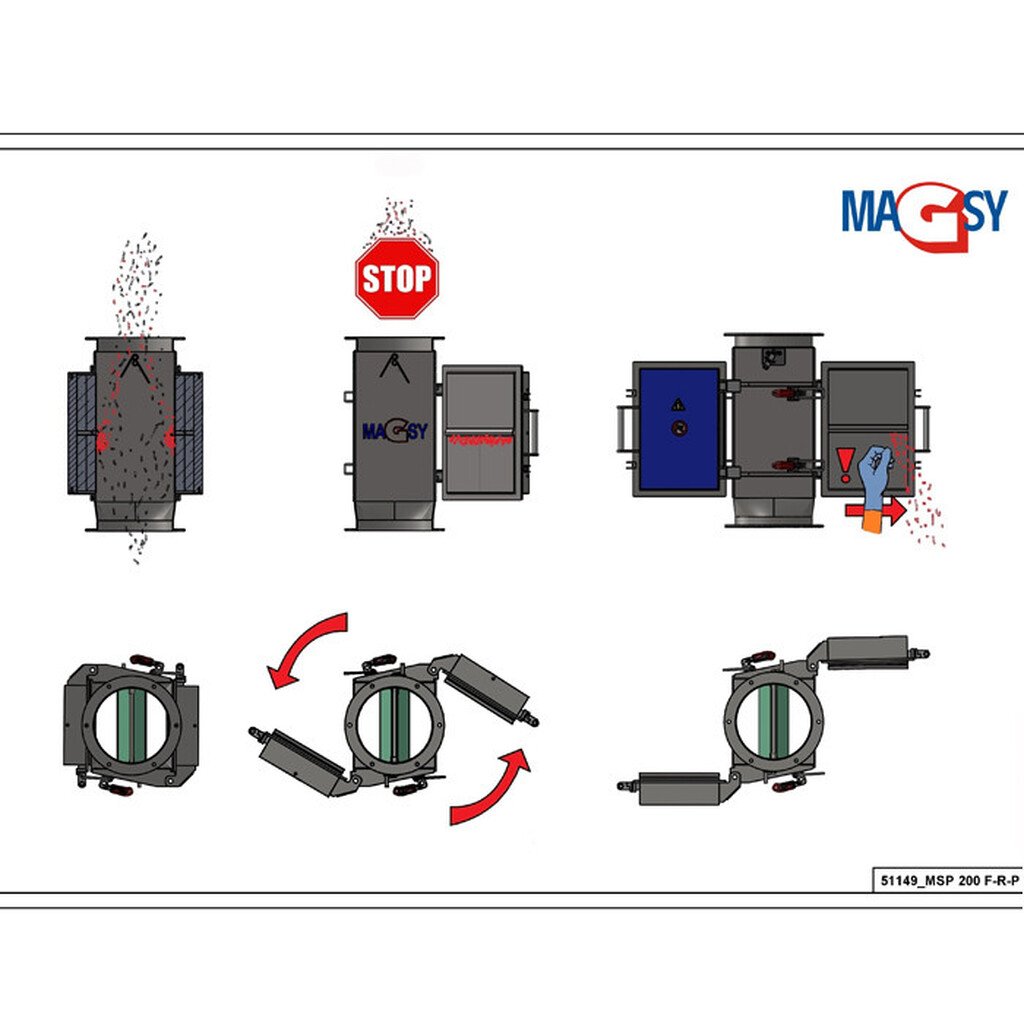

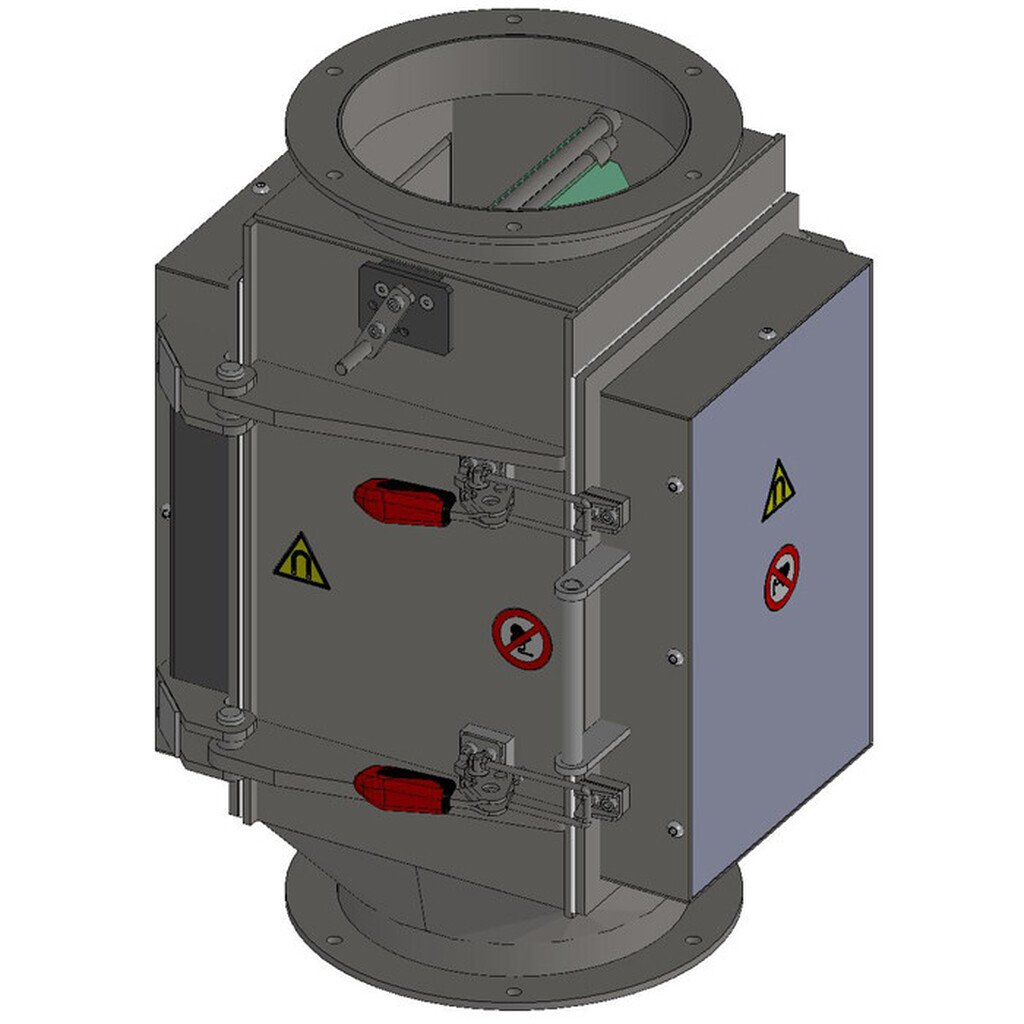

Magnetic separator, plate type, is designed for a separation of easily permeable mixtures characterized by compromised loose parameters and coarser material granularity.

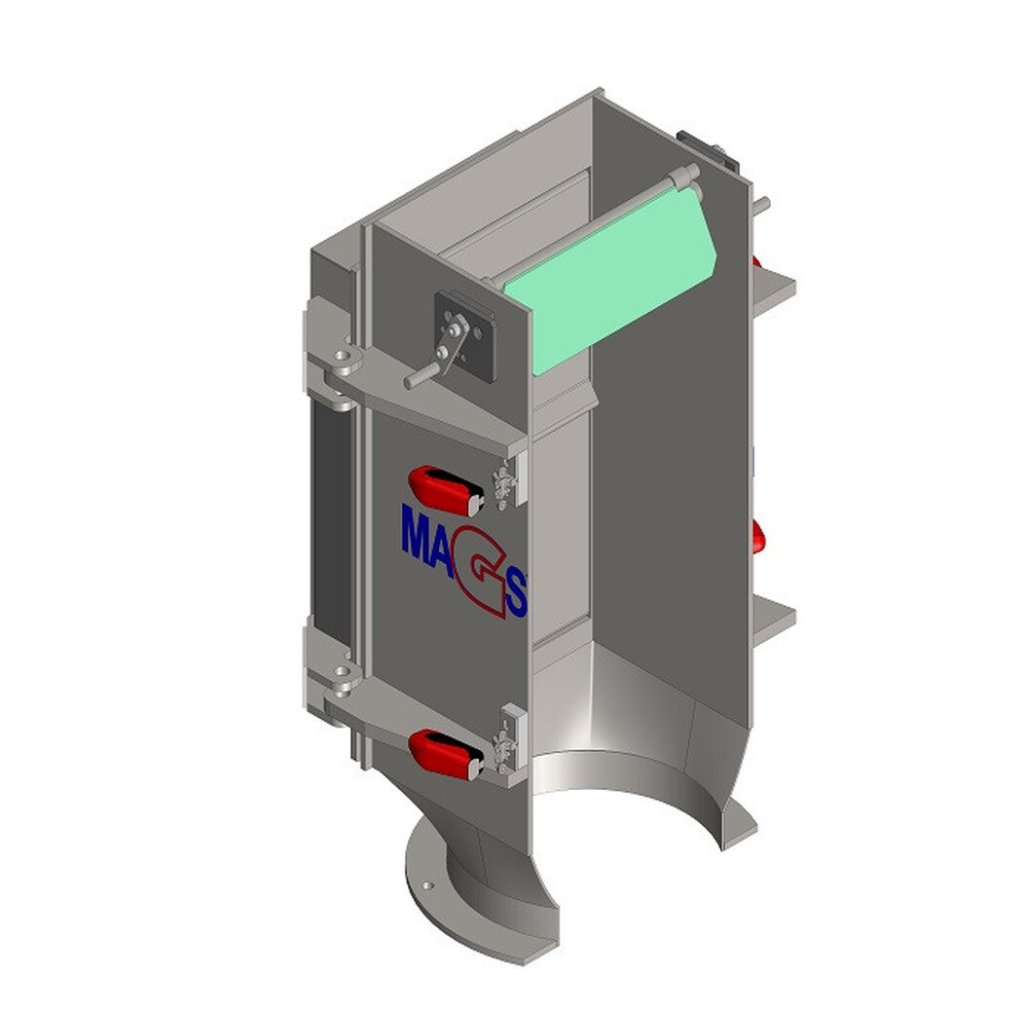

The separator includes 2 magnetic plates with the dimensions of 325x210 mm. Also used are ferrite magnets.
Magnetic separator (magnetic filter) is manufactured using DIN 1.4301 stainless steel.
Magnetic separator body is surface-treated by sanding.

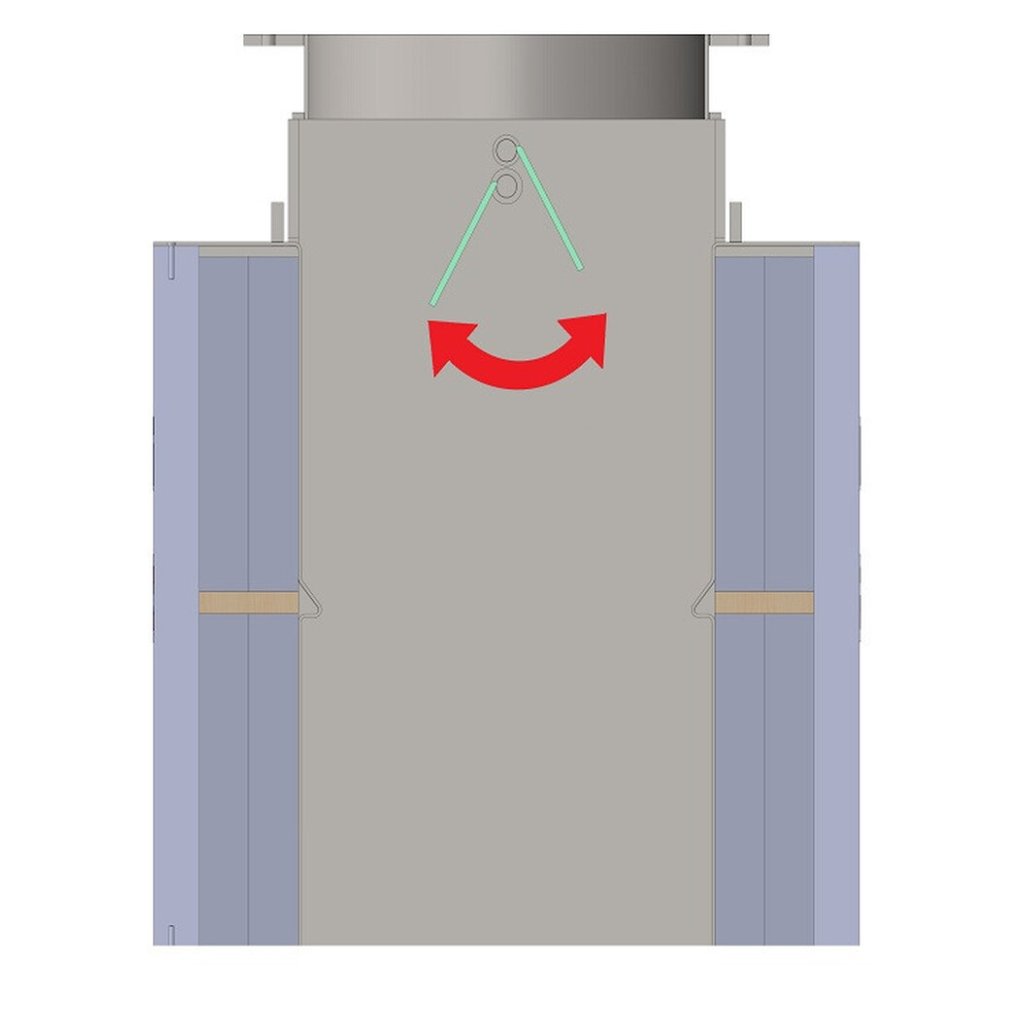

The separator enables setting the drawing-apart roof for the material flow directing.
The sealing is suitable for food industry applications.
Maximum working temperature of this separator is 70°C.
Total weight of this separator amounts to 80 kg.


For more information please see: www.magnetic-separators.info (It will open in a new window)

The reported tear force values for some products were measured under ideal conditions given by the test environment. However, these values may vary depending on the specific type of environment where, for example, operating conditions and subsequent wear may affect the effectiveness of the product. However, measurements have not been made for all products and in such cases are only an estimate or internal auxiliary calculation by the vendor. The values quoted are therefore to be considered as indicative and the Seller declares that they are not a description of the goods in terms of the agreed characteristics in the sales contract on the basis of Article 6(a) of Directive (EU) 2019/771 of the European Parliament and of the Council of 20 May 2019 on certain aspects of contracts for the sale of goods, amending Regulation (EU) 2017/2394 and Directive 2009/22/EC and repealing Directive 1999/44/EC. In order to determine the exact value of the tear force in a specific case, it is necessary to carry out the actual measurement. In case the detected values of the breakaway force are not sufficient for you, as they do not correspond to the stated values, you can take advantage of the guaranteed return option within 30 days under the conditions stated here: https://magsy.shop/goods-returning/ and purchase a stronger magnet. These 30 days are just for testing the goods, after which the seller can refuse the return.
