Magnetic grid / finger magnet MR 390x140x50/4 F-P-MODEL1

Doprava nad 1000 Kč ZDARMA

  • Online only
Magnetic grid / finger magnet MR 390x140x50/4 F-P-MODEL1
You do not have to hesitate with us
E-shop number 11 with magnets
4,000,000+ magnetsin our stock
In Stock
We'll send today
50568
8595133925846
€360.71/pc Tax excluded

More detailed text can be found HERE

Data sheet

Material stainless steel DIN 1.4301 /AISI 304 / ČSN 1724 0
Surface treatment Glass bead blasting
Number of magnetic bars 4
Magnetic bar diameter 31 mm
Tube magnetic force 2,200 Gs
Tube tearing force 20 N
Total weight 5 kg
Magnetic core weight 3,2 kg
Length 140 mm
Width 390 mm
Height 60 mm
Magnet temperature resistance 80 °C
Product state New
Magnet type Ferrite

Additional description

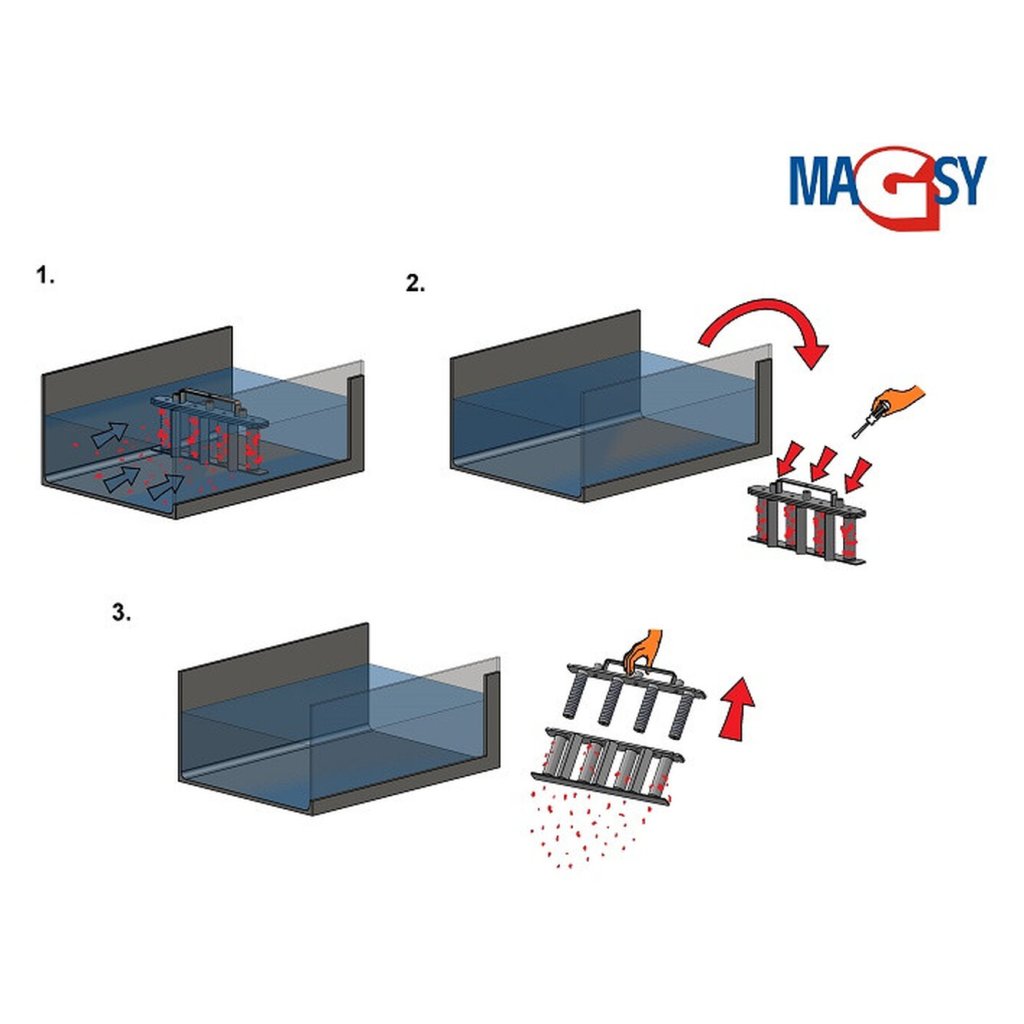

This magnetic grate is designed for a separation of ferromagnetic impurities from both liquid and dry mixtures.
Grate dimensions are 390x150x50 mm; 4 pipes are included.
The grate includes ferrite magnets.
Magnetic grate is manufactured using DIN 1.4301 stainless steel.
Magnetic induction on the coat is characterized by the value of 2200 G, tear-off force of the coat is 20 N.
Maximum working temperature of this grate is 80°C.
Both the grate and pipe are surface treated using the sanding process.
Magnetic core weight is 3.2 kg; total weight is 5 kg.

A great advantage of this magnetic grate consists in its water-tightness!

For more information please see: www.magnetic-separators.info (It will open in a new window)
