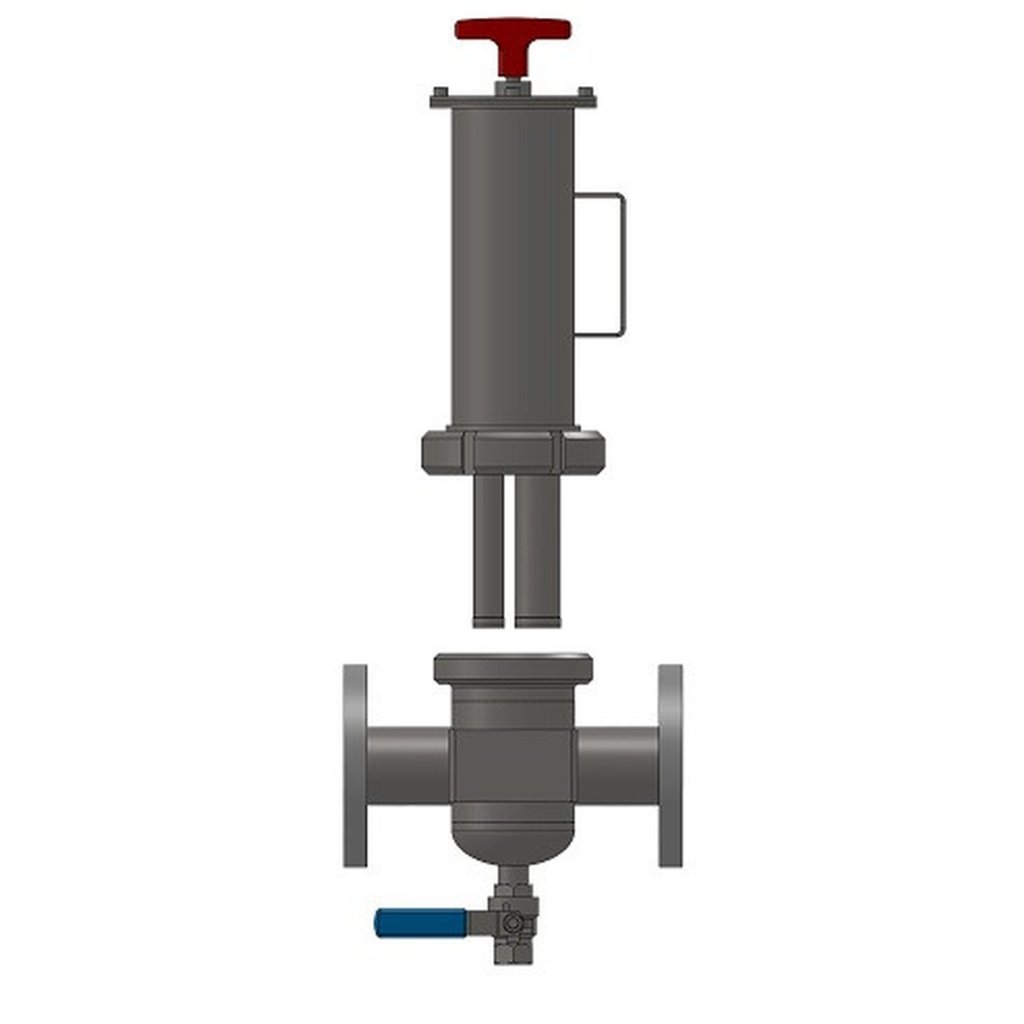

Magnetic separator, flow type, is designed for a separation of ferromagnetic impurities from liquid mixtures. The device is manufactured using DIN 1.4301 stainless steel. Magnetic induction is on the level No. 1 (core magnetic induction: 10400 G, core tear-off force: 133 N, coat magnetic induction: 7400 G, coat tear-off force: 100 N). Magnetic separator (magnetic filter) body is surface-treated by sanding; magnetic pipes are polished. Magnetic core weight is 4.5 kg; total weight is 8 kg.

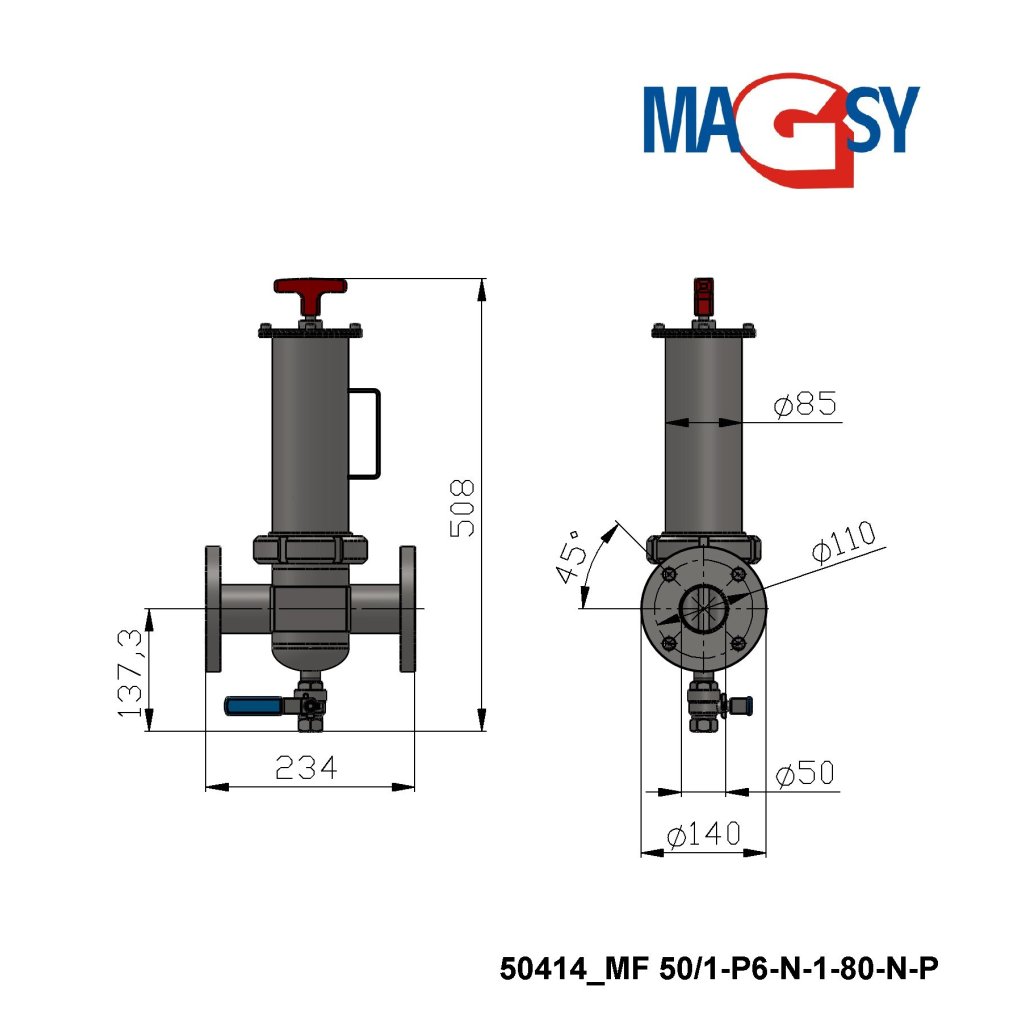

Connection: 2x DN 50 PN 6 flange according to the standard ČSN EN 1092-1, type 01, DN50 PN6, DIN 1.4301 material.
The device is designed for a separation of metal impurities from environments that are not dangerous according to Article 13 of the Directive No. 2014/68/EU (PED); agent group 2. Maximum permitted pressure PS is 6 bar, maximum working temperature of this separator is 80°C. These flow-type magnetic separators do not fall under any pressure device category according to 2014/68/EU (Article 4, section 3.).
